HPC2C393K - KOA Speer

Description: Ceramic Composition Resistors 2W 39K ohm 10%

Download HPC2C393K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HPC2C393K - KOA Speer - PCB symbol
click to zoom
PCB Footprints

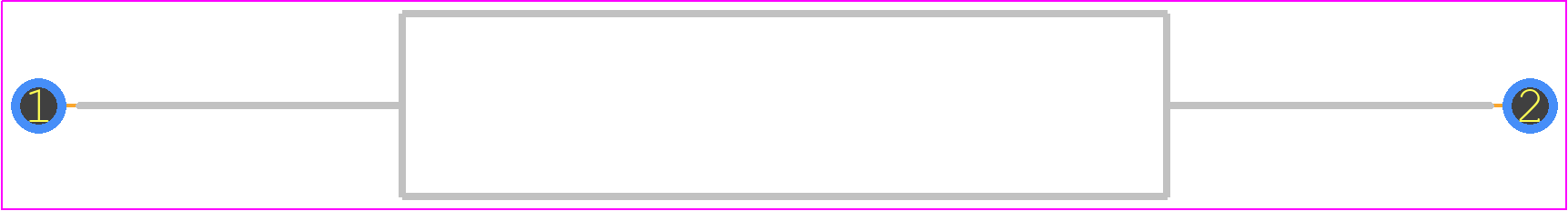

HPC2C393K - KOA Speer PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - HPC2
click to zoom
3D Models
HPC2C393K - KOA Speer - 3D model - Resistors, Axial Diameter Horizontal Mounting - HPC2
click to zoom

HPC2C393K Details

  • Manufacturer Part Number:

    HPC2C393K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    KOA Speer Electronics Inc

  • YTEOL:

    5.5

  • Additional Feature:

    NON INDUCTIVE

  • Construction:

    Tubular

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    38 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    5 mm

  • Package Length:

    21 mm

  • Package Style:

    Axial

  • Packing Method:

    Bulk

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    40 °C

  • Reference Standard:

    AEC-Q200; IEC60115-1

  • Resistance:

    39000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    CERAMIC COMPOSITION

  • Temperature Coefficient:

    -900,-1900 ppm/°C

  • Terminal Finish:

    TIN COPPER

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

  • Working Voltage:

    400 V

HPC2C393K Frequently Asked Questions (FAQs)

  • The recommended land pattern for HPC2C393K is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • Yes, HPC2C393K is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to follow the recommended derating guidelines to ensure reliable operation.
  • HPC2C393K is designed for high-frequency applications and has a self-resonant frequency of 100MHz. It's suitable for use in high-frequency circuits, but it's essential to consider the component's parasitic inductance and capacitance when designing the circuit.
  • Yes, HPC2C393K is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile to ensure reliable joints.
  • HPC2C393K should be stored in a dry, cool place with a temperature range of 10°C to 30°C and a relative humidity of 60% or less. It's essential to avoid exposing the component to moisture, direct sunlight, or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HPC2C393K Overview

Use the download button to access the HPC2C393K schematic symbol, PCB footprint, and 3D model.
