HPCP420RA - Switchcraft

Description: Loudspeaker Connectors 4 PIN PANEL CON RECT RA PC

Download HPCP420RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

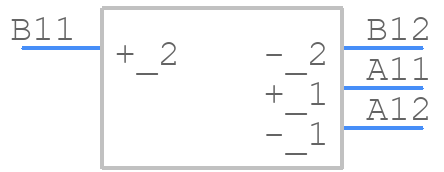

HPCP420RA - Switchcraft - PCB symbol
click to zoom
PCB Footprints

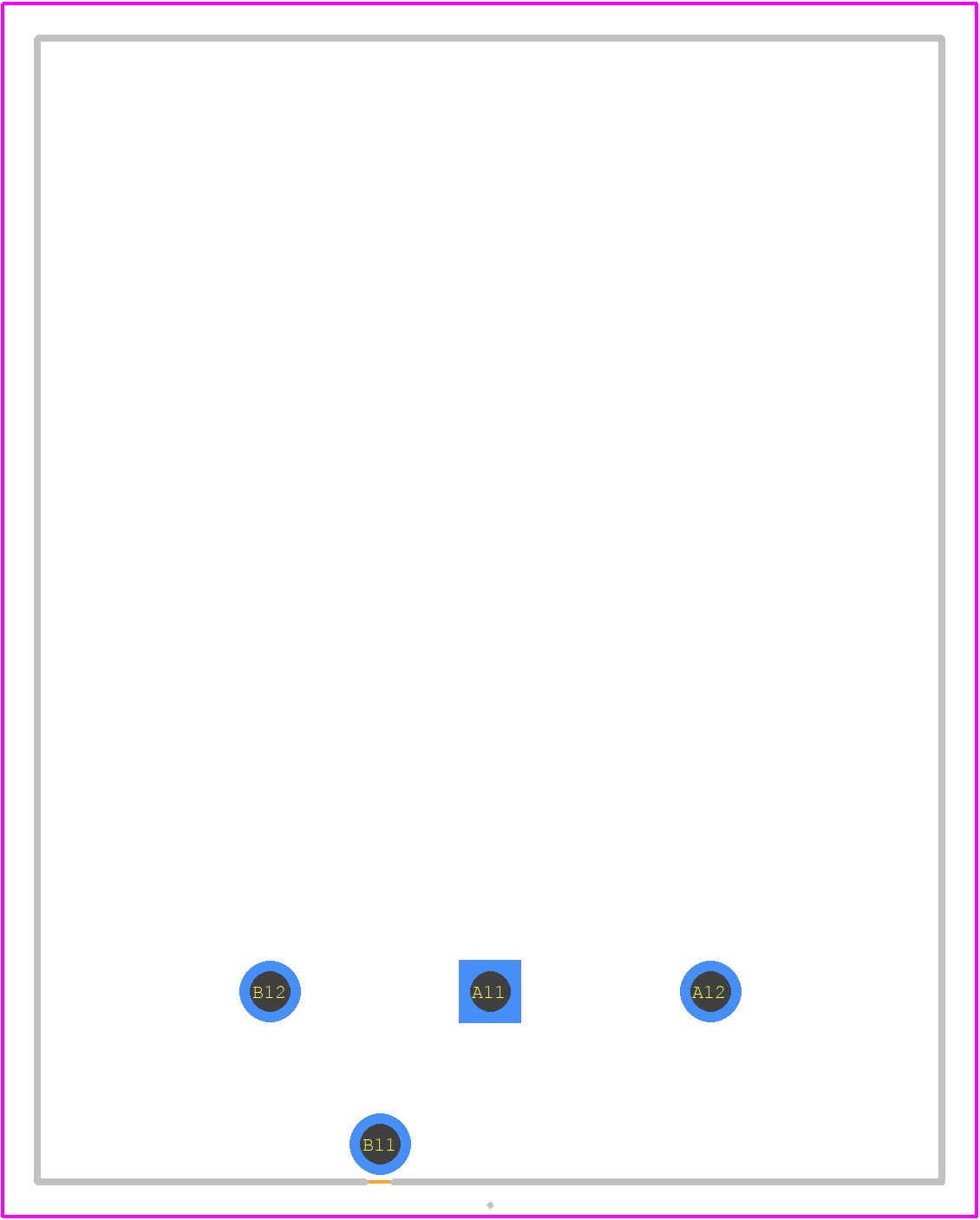

HPCP420RA - Switchcraft PCB footprint - Other - Other - HPCP420RA-7
click to zoom

HPCP420RA Details

  • Manufacturer Part Number:

    HPCP420RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Switchcraft Conxall

  • Configuration:

    1X1 VERTICAL

  • Connector Type:

    GENERAL PURPOSE AUDIO

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    PANEL

  • Number of Poles:

    4

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

HPCP420RA Frequently Asked Questions (FAQs)

  • The recommended torque for the HPCP420RA connector is 10-15 in-lbs (1.1-1.7 Nm) for the coupling nut and 5-10 in-lbs (0.6-1.1 Nm) for the backshell.
  • Yes, the HPCP420RA connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the HPCP420RA connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
  • The HPCP420RA connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the HPCP420RA connector is part of the Switchcraft Conxall series and is compatible with other connectors in the series, allowing for easy integration and mating.
