HPF-08-02-T-S-LC-K footprint, schematic symbol and 3D model by SAMTEC

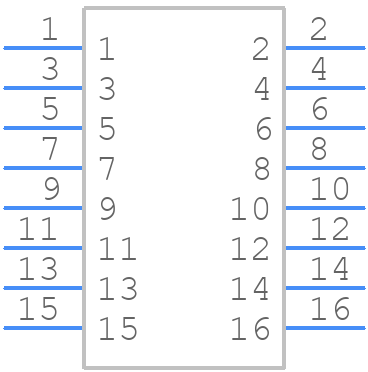

Symbol

click to zoom

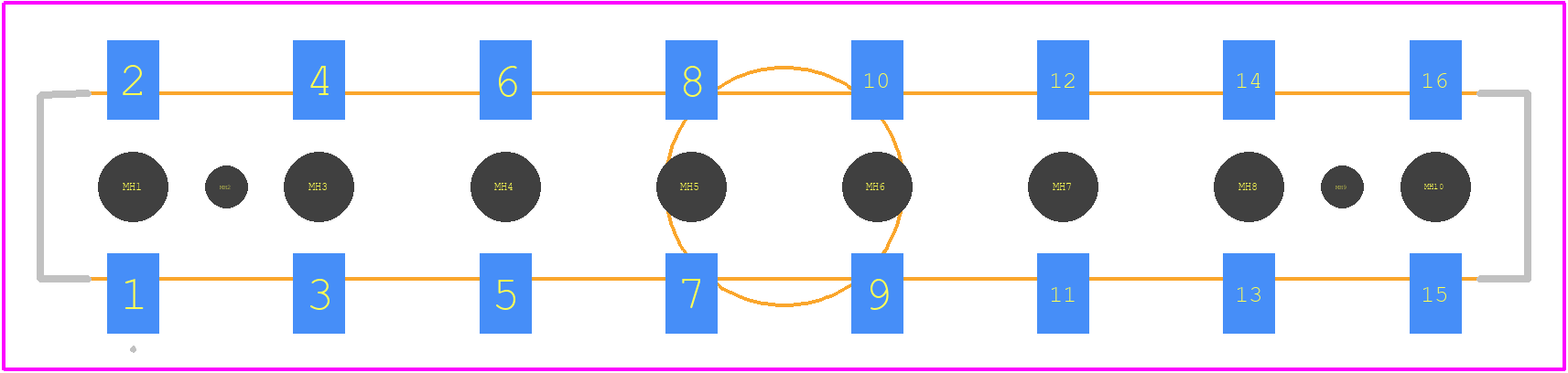

PCB Footprints

HPF-08-02-T-S-LC-K - SAMTEC PCB footprint - Other - Other - HPF-08-02-T-S-LC-K-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HPF-08-02-T-S-LC-K
Part Number HPF-08-02-T-S-LC-K
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - HPF-08-02-T-S-LC-K-2
Released Date Nov 11, 2023
Last Modified Date Nov 11, 2023 10:24 AM UTC
Pinout / Pin List Click Here (Member Only)

HPF-08-02-T-S-LC-K Details

Manufacturer Part Number:
HPF-08-02-T-S-LC-K
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER):16.1A
Body Breadth:
0.2 inch
Body Depth:
0.368 inch
Body Length:
1.6 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Packing Method:
TUBE
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
8

HPF-08-02-T-S-LC-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on the HPF-08-02-T-S-LC-K connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the HPF-08-02-T-S-LC-K connector is compatible with lead-free soldering processes, with a recommended soldering temperature range of 260-270°C (500-518°F).
The maximum operating temperature range for the HPF-08-02-T-S-LC-K connector is -55°C to 125°C (-69°F to 257°F), according to Samtec's datasheet.
Yes, the HPF-08-02-T-S-LC-K connector is designed to withstand high-vibration applications, with a tested vibration resistance of 10-2000 Hz, 10 G peak acceleration.
Yes, the HPF-08-02-T-S-LC-K connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances in electrical and electronic equipment.
