HPM-08-04-T-S - SAMTEC

Description: Connector Header Through Hole 8 position 0.200" (5.08mm)

Download HPM-08-04-T-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HPM-08-04-T-S - SAMTEC - PCB symbol
click to zoom
PCB Footprints

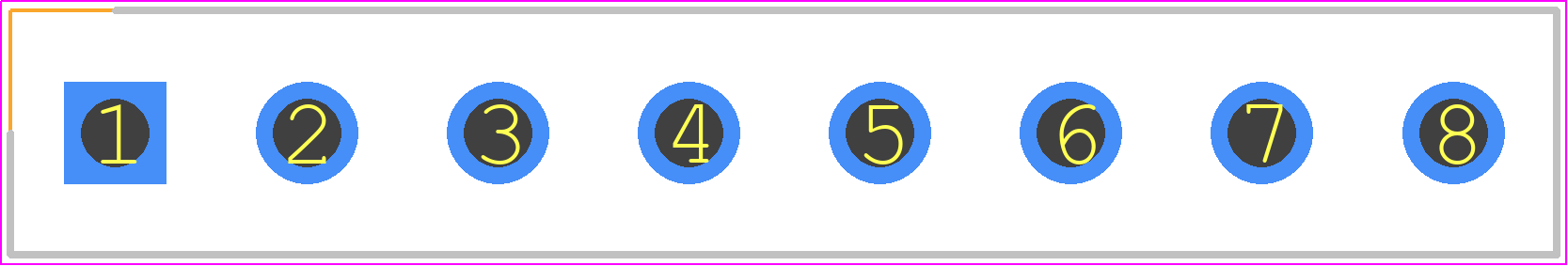

HPM-08-04-T-S - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - HPM-08-04-T-S
click to zoom
3D Models
HPM-08-04-T-S - SAMTEC - 3D model - Header, Vertical - HPM-08-04-T-S
click to zoom

HPM-08-04-T-S Details

  • Manufacturer Part Number:

    HPM-08-04-T-S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):16A

  • Body Breadth:

    0.25 inch

  • Body Depth:

    0.1 inch

  • Body Length:

    1.6 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    MATTE TIN OVER NICKEL (50)

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

HPM-08-04-T-S Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the HPM-08-04-T-S connector, as specified in Samtec's application notes.
  • Yes, the HPM-08-04-T-S connector is designed to withstand high-vibration environments. Samtec's testing has shown that it can withstand vibrations up to 20 G's, making it suitable for use in ruggedized applications.
  • The maximum operating temperature of the HPM-08-04-T-S connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • The HPM-08-04-T-S connector has a moisture-resistant design, but it's not fully waterproof. It's recommended to use a conformal coating or potting compound to protect the connector from moisture in humid or wet environments.
  • The HPM-08-04-T-S connector has a mating cycle life of 500 cycles, as specified in the datasheet. This means it can withstand 500 connect/disconnect cycles without significant degradation in performance.
