HPP845E131R5 - TE Connectivity

Description: SENSOR SOLUTIONS - TE CONNECTIVITY - HPP845E131R5 - HUMIDITY/TEMP SENSOR, DIGITAL, DFN-6

Download HPP845E131R5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

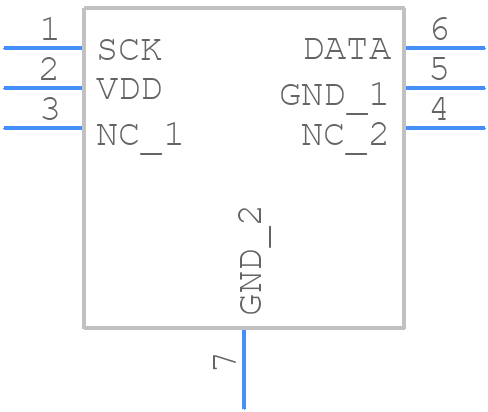

HPP845E131R5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
HPP845E131R5 - TE Connectivity PCB footprint - Small Outline No-lead - Small Outline No-lead - HPP845E131R5
click to zoom
3D Models
HPP845E131R5 - TE Connectivity - 3D model - Small Outline No-lead - HPP845E131R5
click to zoom

HPP845E131R5 Details

  • Manufacturer Part Number:

    HPP845E131R5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-06-22

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.4

  • Body Breadth:

    3 mm

  • Body Height:

    1.13 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    14

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.014 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    1.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

HPP845E131R5 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for HPP845E131R5 is between 250°C to 260°C for a maximum of 10 seconds.
  • Yes, HPP845E131R5 is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The maximum operating voltage for HPP845E131R5 is 50V, although it's recommended to operate within the specified voltage range for optimal performance.
  • While HPP845E131R5 has a high operating temperature range, it's not recommended for extreme high-temperature applications (>150°C) without proper derating and thermal management.
  • HPP845E131R5 is designed for general-purpose applications and may not be suitable for high-frequency applications (>100MHz) due to its inductive characteristics.
