HR10A-10R-12PB(71) - Hirose

Description: Circular Push Pull Connectors 12P RECP SHELL SZ 10 MALE SIL TRM PCB DIP

Download HR10A-10R-12PB(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HR10A-10R-12PB(71) - Hirose - PCB symbol
click to zoom

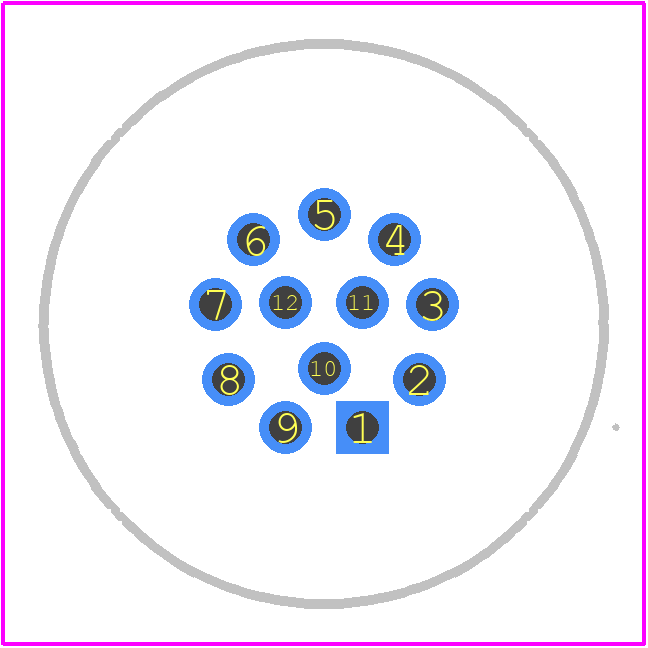

PCB Footprints
HR10A-10R-12PB(71) - Hirose PCB footprint - Other - Other - HR10A-10R-12PB(71)-1
click to zoom
3D Models
HR10A-10R-12PB(71) - Hirose - 3D model - Other - HR10A-10R-12PB(71)-1
click to zoom

HR10A-10R-12PB(71) Details

  • Manufacturer Part Number:

    HR10A-10R-12PB(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.3

  • Connector Type:

    CIRCULAR CONNECTOR

HR10A-10R-12PB(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
  • Yes, the HR10A-10R-12PB(71) is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific vibration testing and ratings.
  • The HR10A-10R-12PB(71) has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific environmental ratings and considerations.
  • The maximum operating temperature for the HR10A-10R-12PB(71) is 105°C. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific temperature ratings and derating considerations.
  • It's not recommended to use the HR10A-10R-12PB(71) with a different wire gauge than recommended, as it may affect the connector's performance and reliability. Consult the datasheet or contact Hirose Electric Co Ltd for specific wire gauge recommendations.
