Part Image

HR25A-9R-20SA - Hirose

Description: Circular Push Pull Connectors 20P RECPT SHELL SZ 9 FEMALE CNTS PCB MNT

Download HR25A-9R-20SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HR25A-9R-20SA - Hirose - PCB symbol
click to zoom
PCB Footprints

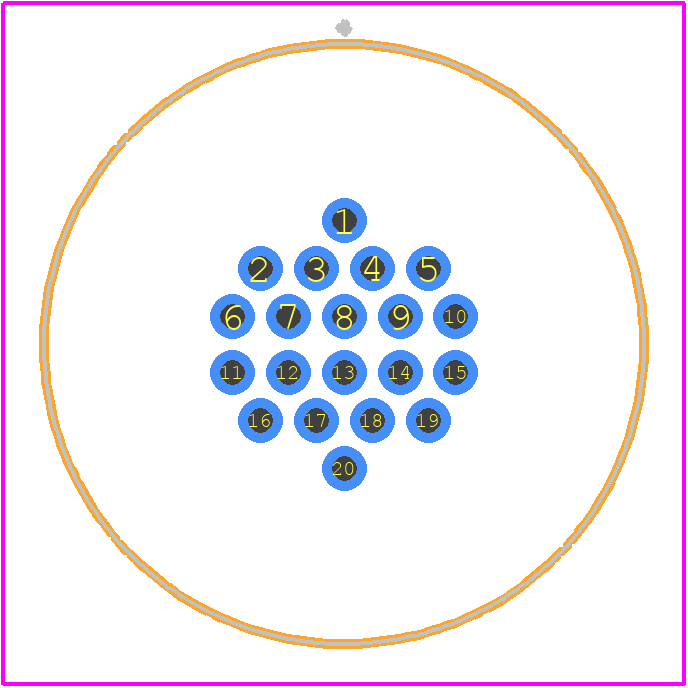

HR25A-9R-20SA - Hirose PCB footprint - Other - Other - HR25A-9R-20SA-2
click to zoom
3D Models
HR25A-9R-20SA - Hirose - 3D model - Other - HR25A-9R-20SA-2
click to zoom

HR25A-9R-20SA Details

  • Manufacturer Part Number:

    HR25A-9R-20SA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Shell Size:

    9

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

HR25A-9R-20SA Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of HR25A-9R-20SA is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the HR25A-9R-20SA is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 100G (11ms), making it suitable for use in high-vibration environments.
  • The HR25A-9R-20SA has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m for 30 minutes. However, it's recommended to use additional sealing or protection measures for outdoor use.
  • The HR25A-9R-20SA has an operating temperature range of -40°C to 105°C, making it suitable for use in a wide range of applications.
  • The HR25A-9R-20SA is designed for use with AWG20-22 wire, but it can also be used with AWG24 wire with some limitations. It's recommended to consult with Hirose Electric Co Ltd's application engineers for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HR25A-9R-20SA Overview

Use the download button to access the HR25A-9R-20SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HR25A, or try a keyword search, such as Other Circular Connectors
