Part Image

HR916103H - Hanrun Electronics

Description: Stacked 2x1 RJ45 Connector with Integrated Magnetics and LED for 10/100Base-TX Applications 2250VDC 0.5mA 60Sec 100mV 100KHz 350uH 30mohme -40c ~ +85c

Download HR916103H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

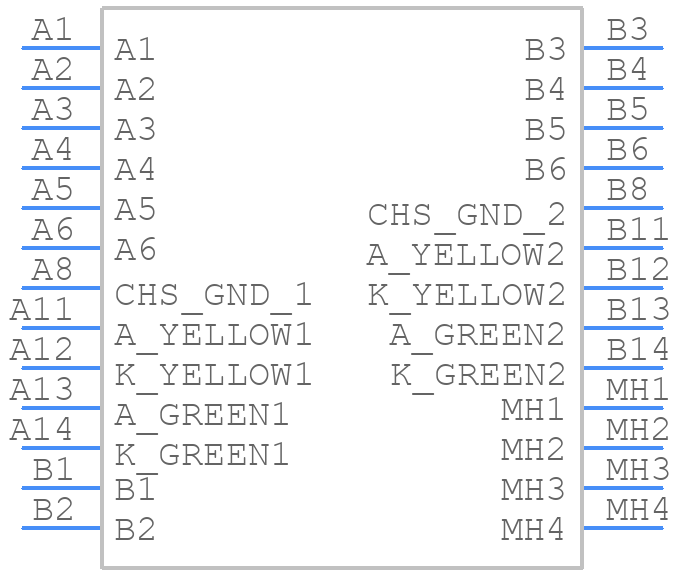

HR916103H - Hanrun Electronics - PCB symbol
click to zoom
PCB Footprints

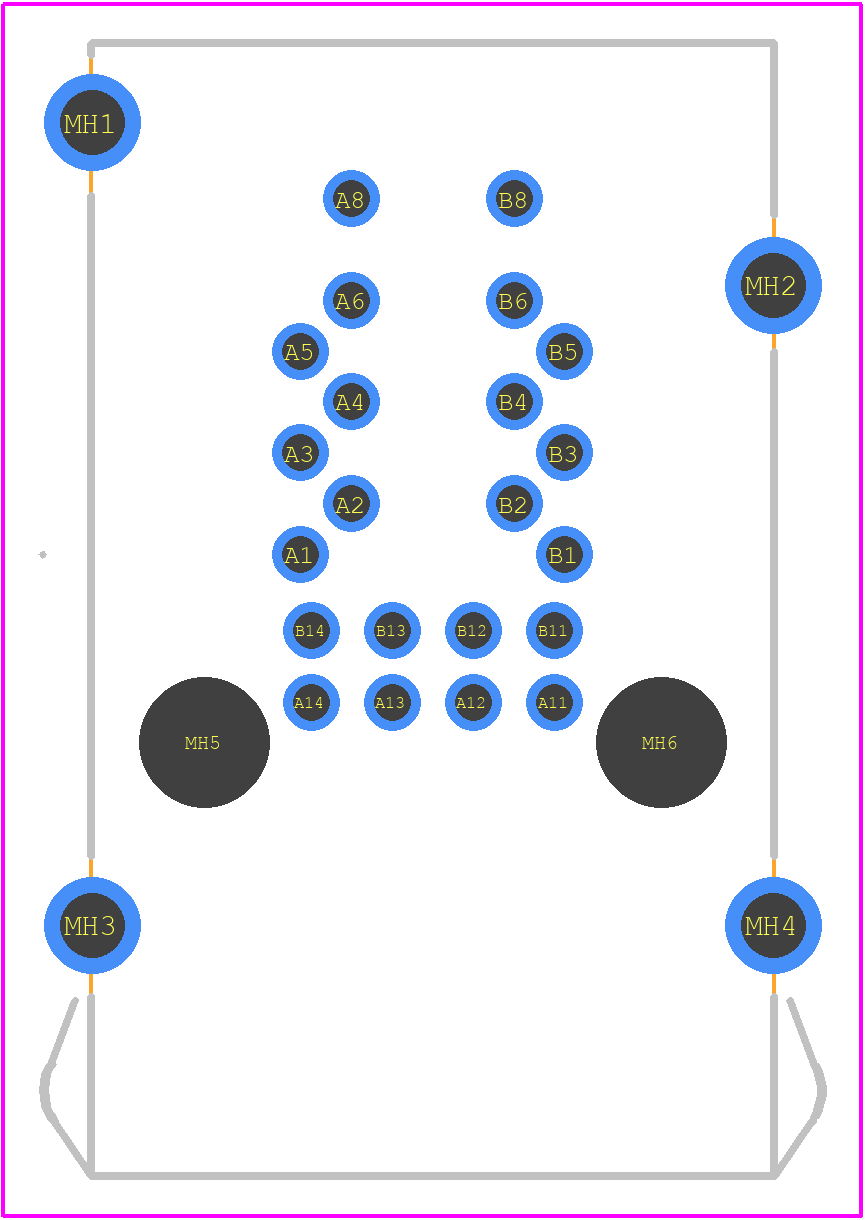

HR916103H - Hanrun Electronics PCB footprint - Other - Other - HR916103H-2
click to zoom

HR916103H Details

  • Manufacturer Part Number:

    HR916103H

  • Manufacturer:

    Hanrun Electronics Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HR916103H Overview

Use the download button to access the HR916103H schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HR916, or try a keyword search, such as Telecom and Datacom Connectors
