HRL3024S600P - XP POWER

Description: Non-Isolated DC/DC Converters 30W 0 to 600V 1.5A

Download HRL3024S600P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

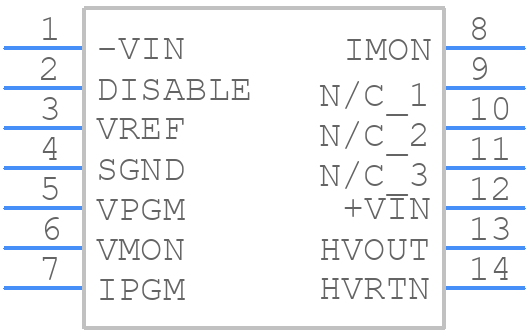

Symbol
HRL3024S600P - XP POWER - PCB symbol
click to zoom

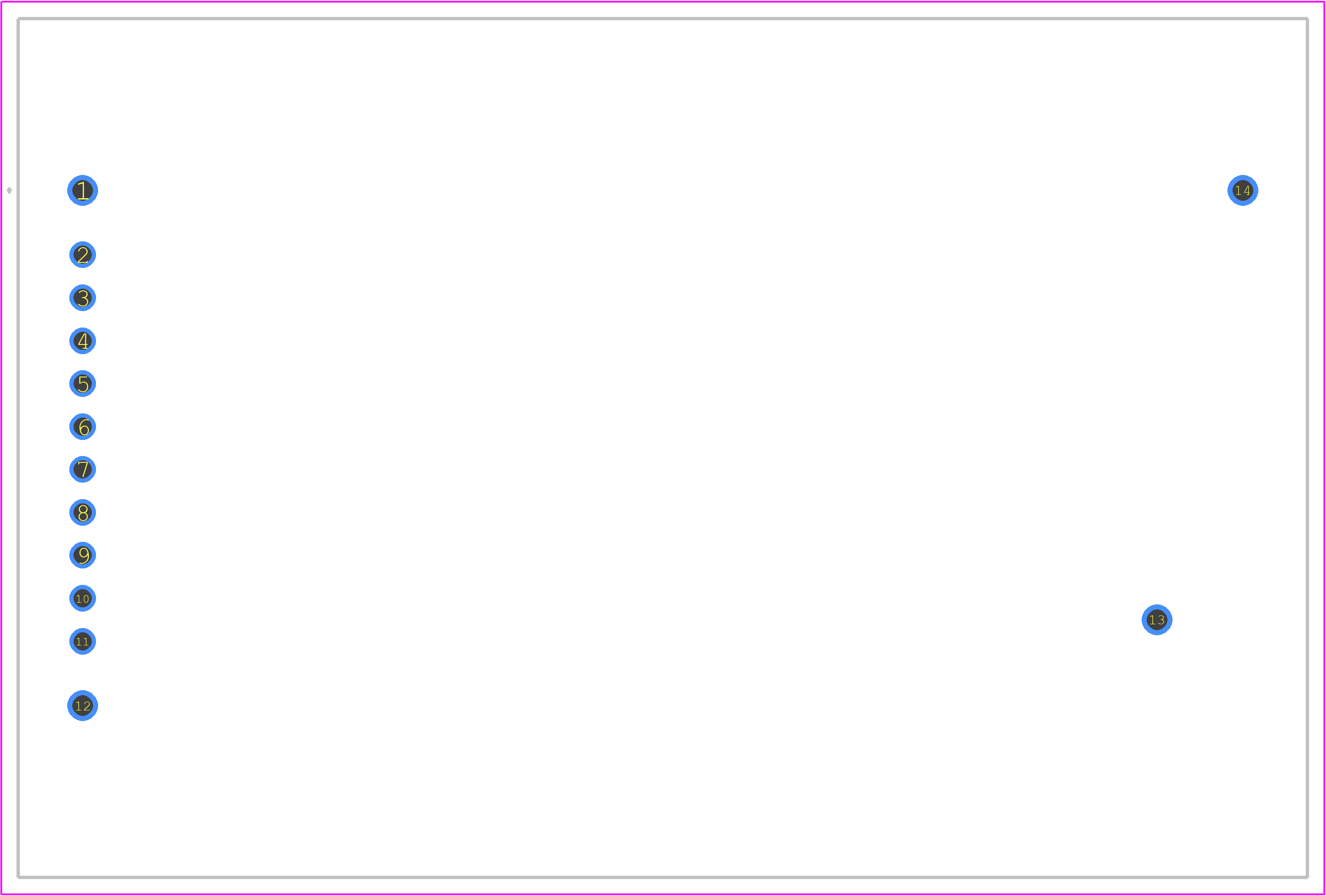

PCB Footprints
HRL3024S600P - XP POWER PCB footprint - Other - Other - HRL3024S600P-1
click to zoom
3D Models
HRL3024S600P - XP POWER - 3D model - Other - HRL3024S600P-1
click to zoom

HRL3024S600P Details

  • Manufacturer Part Number:

    HRL3024S600P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HRL3024S600P Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the HRL3024S600P is -40°C to +100°C, with derating above 80°C.
  • Yes, the HRL3024S600P is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
  • XP Power recommends a minimum PCB thickness of 1.6mm, with a large copper area for heat dissipation. A thermal interface material (TIM) should be used between the module and the heatsink.
  • Yes, the HRL3024S600P is designed to operate in humid environments and meets the IEC 60068-2-78 humidity test standard. However, it's recommended to use conformal coating or potting to ensure reliability in extreme humidity conditions.
  • The MTBF of the HRL3024S600P is approximately 1.5 million hours at 40°C, calculated according to MIL-HDBK-217F.
