HRS2H-S DC24V - Multicomp Pro

Description: MULTICOMP - HRS2H-S DC24V - RELAY, SIGNAL, DPDT, 120VAC, 24VDC, 2A

Download HRS2H-S DC24V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HRS2H-S DC24V model

Email notifications will be applied after download.

Send part feedback

Symbol

HRS2H-S DC24V - Multicomp Pro - PCB symbol

PCB Footprints

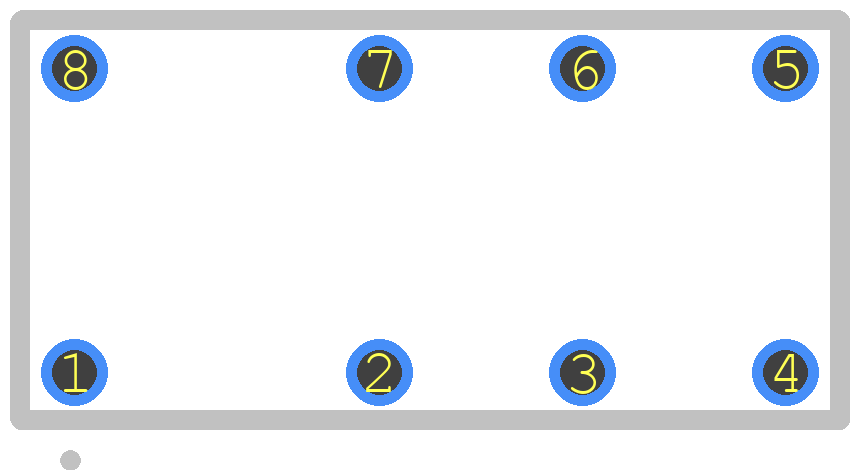

HRS2H-S DC24V - Multicomp Pro PCB footprint - Other - Other - HRS2H-S

Datasheet Download Datasheet
Stock & Prices Price & Stock for HRS2H-S DC24V
Part Number HRS2H-S DC24V
Manufacturer Multicomp Pro
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HRS2H-S
Released Date Mar 6, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HRS2H-S DC24V Details

Manufacturer Part Number:
HRS2H-S DC24V
Manufacturer:
SPC Multicomp
