HS1B-0546RH/PROTO - Renesas Electronics

Description: The HS-0546RH and HS-0547RH are radiation hardened analog multiplexers with Active Overvoltage Protection and guaranteed rON matching. Analog input levels may greatly exceed either power supply without damaging the device or disturbing the signal path of other channels. Active protection circuitry assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand constant 70V peak-to-peak levels with ±15V supplies and digital inputs will

Download HS1B-0546RH/PROTO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

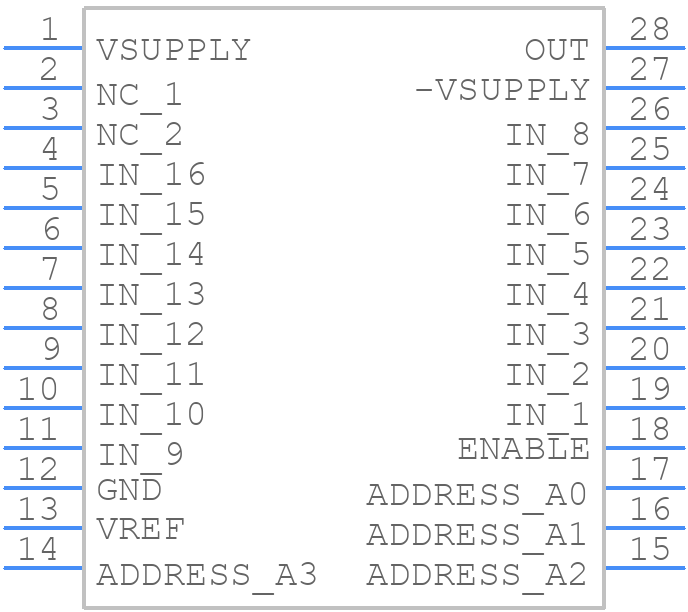

HS1B-0546RH/PROTO - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

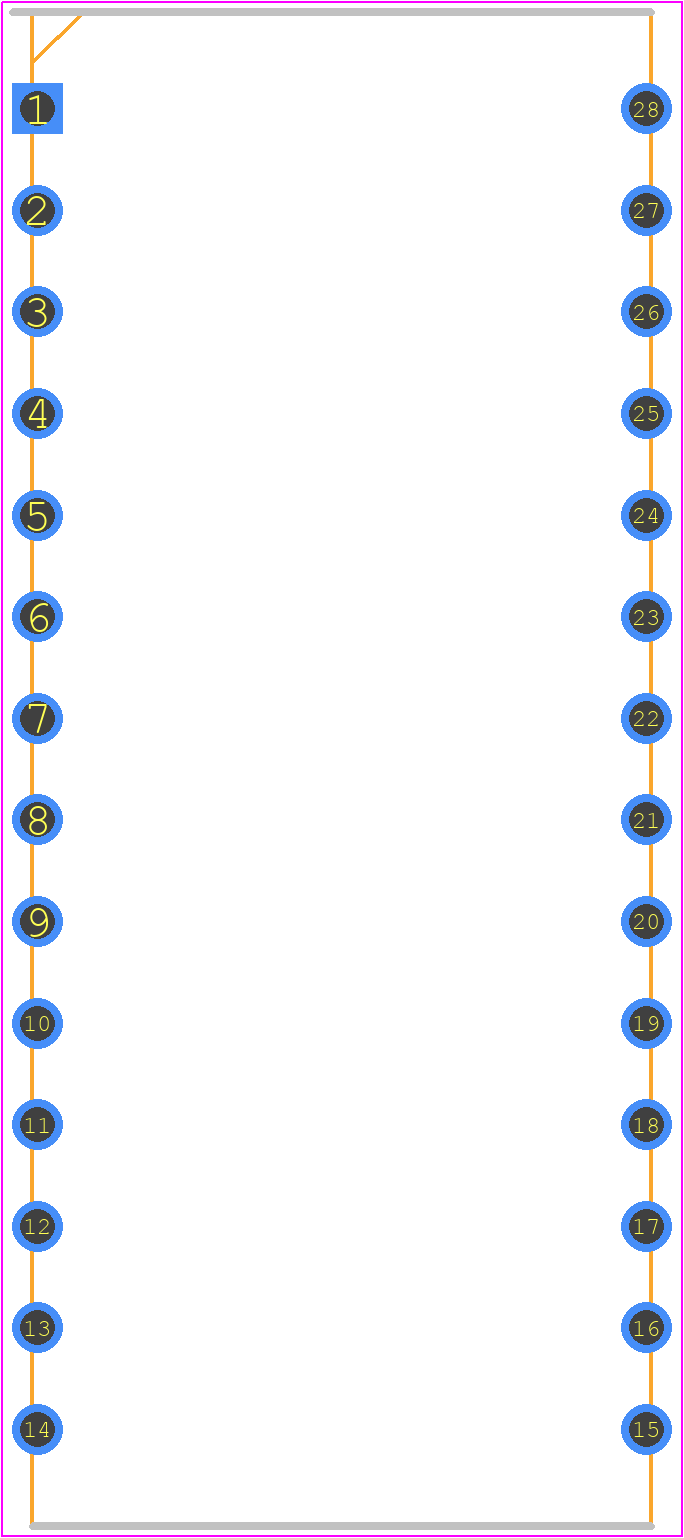

HS1B-0546RH/PROTO - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - D28.6
click to zoom

HS1B-0546RH/PROTO Details

  • Manufacturer Part Number:

    HS1B-0546RH/PROTO

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SBDIP

  • Package Description:

    DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    D28.6

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-CDIP-T28

  • JESD-609 Code:

    e4

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Dose:

    10k Rad(Si) V
