CAP-XX recommends a compact, symmetrical layout with short, wide traces to minimize ESL and ESR. A 4-layer PCB with a solid ground plane is recommended. Avoid routing high-frequency signals near the supercapacitor.
To minimize inrush current, use a soft-start circuit or a current limiter to ramp up the voltage slowly. You can also use a series resistor to limit the inrush current, but this may affect the overall efficiency.
While the datasheet specifies an operating temperature range of -40°C to 85°C, CAP-XX recommends derating the supercapacitor's capacitance and voltage rating for extended operation above 65°C to ensure reliability and lifespan.
Yes, the HS208F is designed to withstand high-vibration environments. However, it's essential to ensure the supercapacitor is properly secured to the PCB using a suitable mounting method, such as a screw or adhesive, to prevent mechanical stress and damage.
The optimal balancing circuit depends on the specific application requirements. CAP-XX recommends consulting their application notes and design guides for guidance on selecting the appropriate balancing circuit topology and component values.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
HS208F Overview

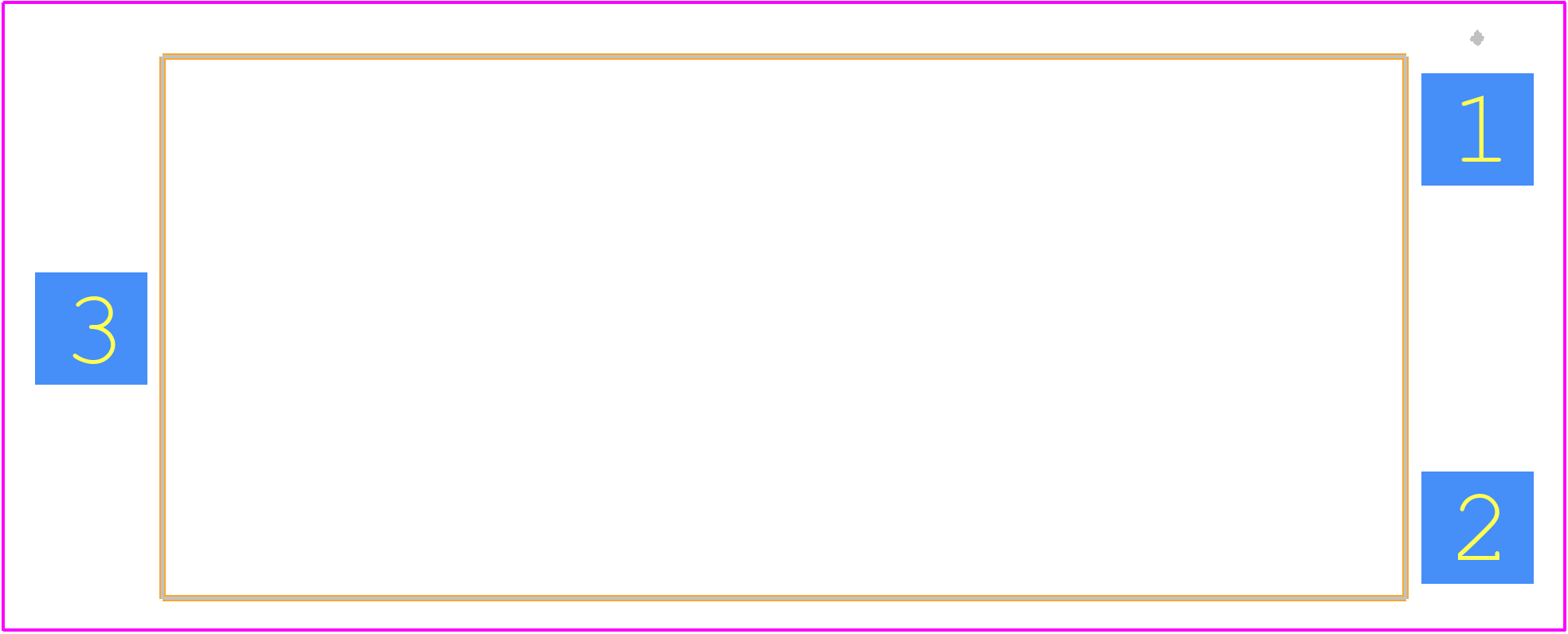

Use the download button to access the HS208F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HS208,
or try a keyword search, such as Special Capacitors
