CAP-XX recommends a land pattern with a minimum pad size of 3.5mm x 2.5mm and a spacing of 1.5mm between pads. A symmetrical layout with a central pad for the capacitor is recommended to minimize inductance and ensure optimal performance.
To mitigate inrush current, use a current-limited power supply or add a current-limiting resistor in series with the capacitor. Additionally, consider using a soft-start circuit or a ramp-up voltage source to reduce the inrush current.
While the datasheet specifies a maximum operating temperature of 70°C, CAP-XX recommends derating the capacitor's performance at high temperatures. For optimal performance, operate the HS230F between 20°C and 50°C.
Yes, the HS230F is designed to withstand vibrations up to 10G. However, it's essential to ensure the capacitor is properly secured to the PCB using a suitable mounting method, such as a screw or adhesive, to prevent mechanical stress.
Store the HS230F in a cool, dry place with a relative humidity below 60%. Avoid storing the capacitor in direct sunlight or near heat sources. If storing for extended periods, consider storing the capacitor with a 50% charge to minimize degradation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
HS230F Overview

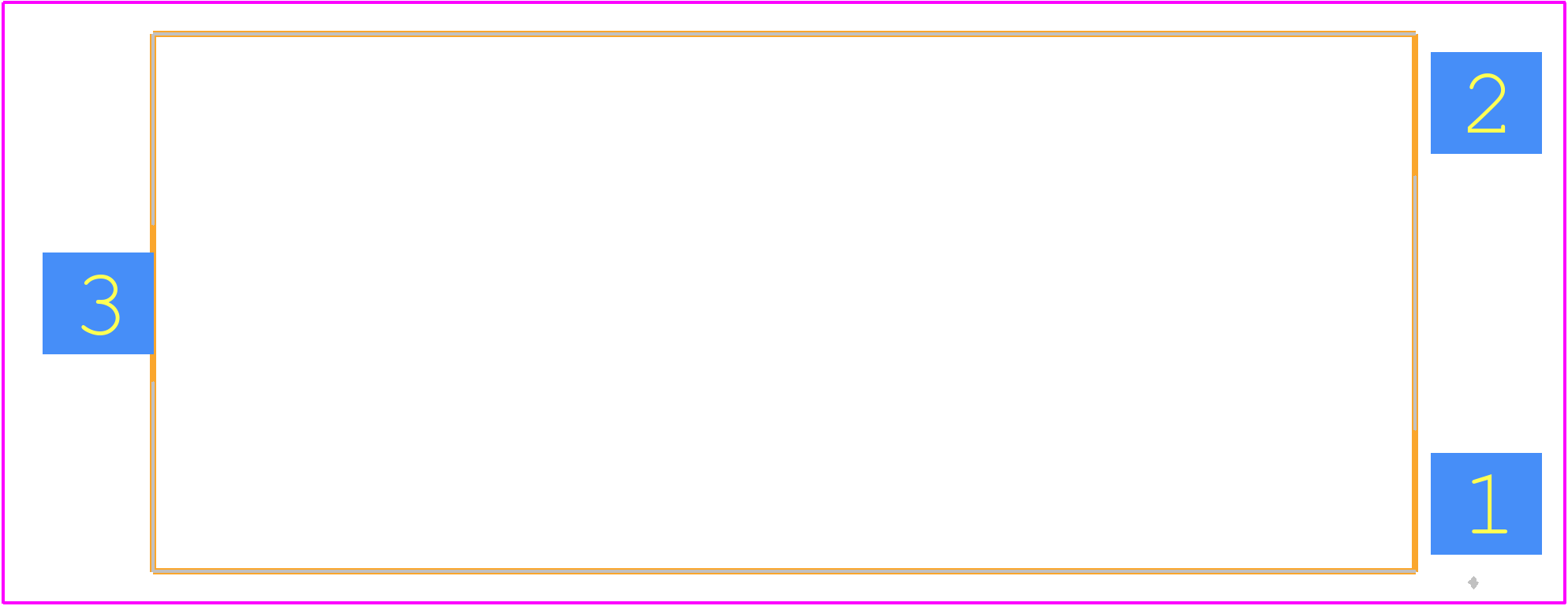

Use the download button to access the HS230F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HS230,
or try a keyword search, such as Special Capacitors
