HSB-D4-03DM012X - Amphenol

Description: Rectangular MIL Spec Connectors 3 DIF PAIR DB .09 SO PCB R/A .016 Dia

Download HSB-D4-03DM012X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HSB-D4-03DM012X - Amphenol - PCB symbol
click to zoom
PCB Footprints

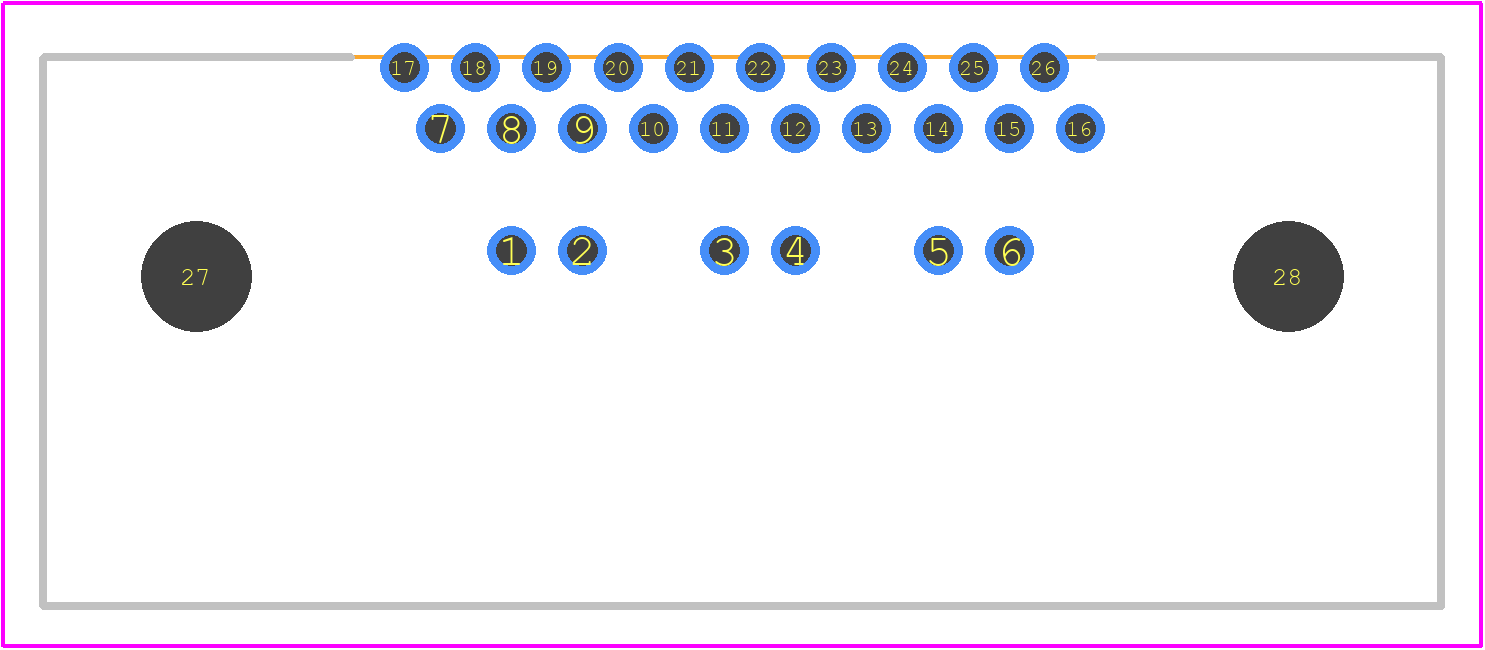

HSB-D4-03DM012X - Amphenol PCB footprint - Other - Other - HSB-D4-03DM012X
click to zoom
3D Models
HSB-D4-03DM012X - Amphenol - 3D model - Other - HSB-D4-03DM012X
click to zoom

HSB-D4-03DM012X Details

  • Manufacturer Part Number:

    HSB-D4-03DM012X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD (30) OVER NICKEL (50)

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

HSB-D4-03DM012X Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.0 Nm (4.4-8.8 in-lbs).
  • Yes, the HSB-D4-03DM012X connector is designed to withstand high-vibration environments and is suitable for use in applications such as aerospace, defense, and industrial automation.
  • The operating temperature range of the HSB-D4-03DM012X connector is -55°C to 125°C (-133°F to 257°F).
  • Yes, the HSB-D4-03DM012X connector is designed to be resistant to harsh environments, including high humidity and exposure to chemicals. It meets the requirements of IP67 and is suitable for use in outdoor and industrial applications.
  • Yes, the HSB-D4-03DM012X connector is designed for high-speed data transmission and can support data rates up to 10 Gbps.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSB-D4-03DM012X Overview

Use the download button to access the HSB-D4-03DM012X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSB-D, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
