HSB-D4-03DM022X - Amphenol

Description: Rectangular MIL Spec Connectors 3 DIF PAIR DB .12 SO PCB R/A .016 Dia

Download HSB-D4-03DM022X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

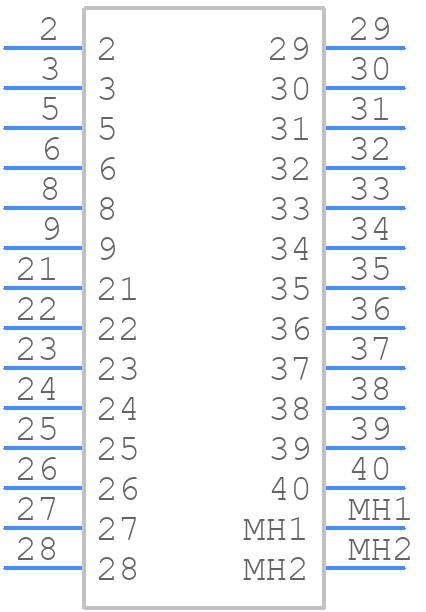

HSB-D4-03DM022X - Amphenol - PCB symbol
click to zoom
PCB Footprints

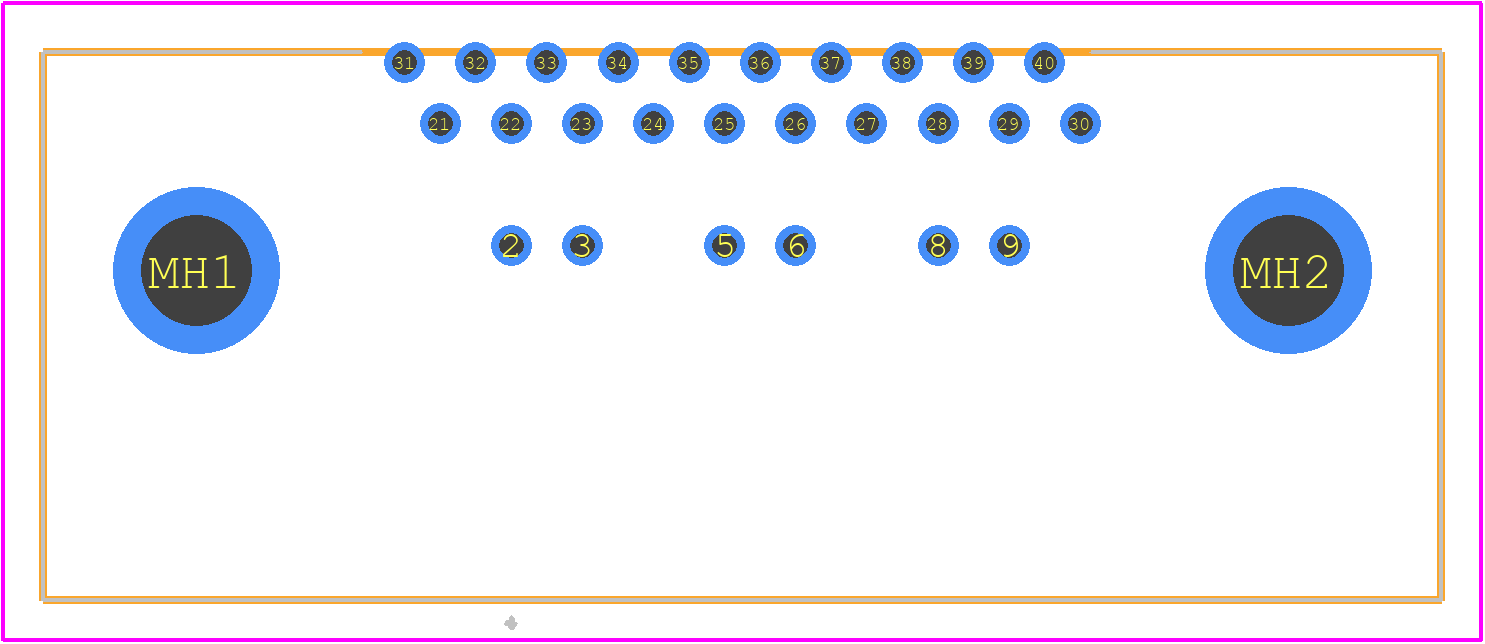

HSB-D4-03DM022X - Amphenol PCB footprint - Other - Other - HSB-D4-03DM022X-1
click to zoom
3D Models
HSB-D4-03DM022X - Amphenol - 3D model - Other - HSB-D4-03DM022X-1
click to zoom

HSB-D4-03DM022X Details

  • Manufacturer Part Number:

    HSB-D4-03DM022X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    57 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

HSB-D4-03DM022X Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper mating and to prevent damage to the connector.
  • Yes, the HSB-D4-03DM022X is designed to withstand high-vibration environments. It has a ruggedized design and a secure screw-locking mechanism to ensure reliable connections.
  • Yes, the HSB-D4-03DM022X is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • The maximum operating temperature range for the HSB-D4-03DM022X is -40°C to 125°C (-40°F to 257°F).
  • Yes, the HSB-D4-03DM022X is designed to be used with a cable assembly. It has a cable clamp and strain relief to secure the cable and prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSB-D4-03DM022X Overview

Use the download button to access the HSB-D4-03DM022X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSB-D, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
