HSB-M4-03DC235T - Amphenol

Description: Rectangular Mil Spec Connectors 3 DIF PAIR MB .15 SO PCB STRAIG .016 Dia

Download HSB-M4-03DC235T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

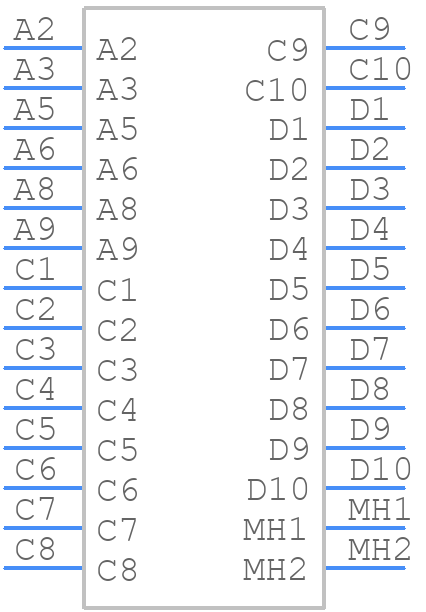

Symbol
HSB-M4-03DC235T - Amphenol - PCB symbol
click to zoom

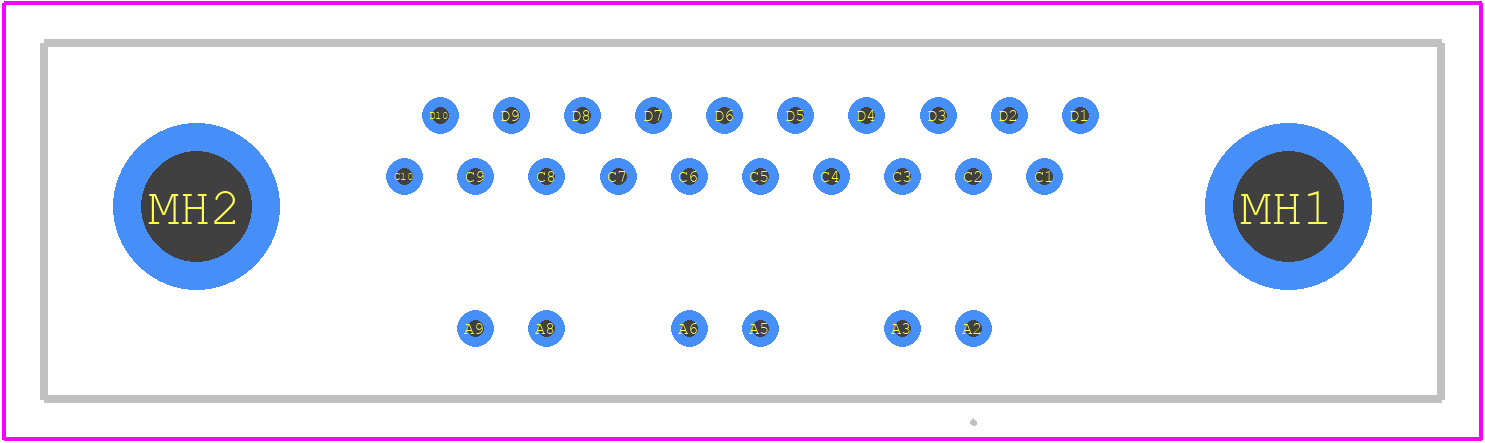

PCB Footprints
HSB-M4-03DC235T - Amphenol PCB footprint - Other - Other - HSB-M4-03DC235T-4
click to zoom
3D Models
HSB-M4-03DC235T - Amphenol - 3D model - Other - HSB-M4-03DC235T-4
click to zoom

HSB-M4-03DC235T Details

  • Manufacturer Part Number:

    HSB-M4-03DC235T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (20) OVER NICKEL

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

HSB-M4-03DC235T Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the M4 screw threads.
  • Yes, the connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • The operating temperature range for the HSB-M4-03DC235T connector is -55°C to 125°C (-133°F to 257°F).
  • Yes, the connector is designed to be resistant to corrosion and can withstand exposure to saltwater and certain chemicals, but it's recommended to consult the datasheet and Amphenol's application notes for specific guidance.
  • The HSB-M4-03DC235T connector is designed for signal transmission up to 3 GHz, making it suitable for high-speed data transmission applications such as Ethernet, USB, and HDMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSB-M4-03DC235T Overview

Use the download button to access the HSB-M4-03DC235T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSB-M, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
