Part Image

HSB-M4-03DM222X - Amphenol

Description: Rectangular MIL Spec Connectors 3 DIF PAIR MB .12 SO PCB STRAIG .016 Dia

Download HSB-M4-03DM222X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HSB-M4-03DM222X - Amphenol - PCB symbol
click to zoom

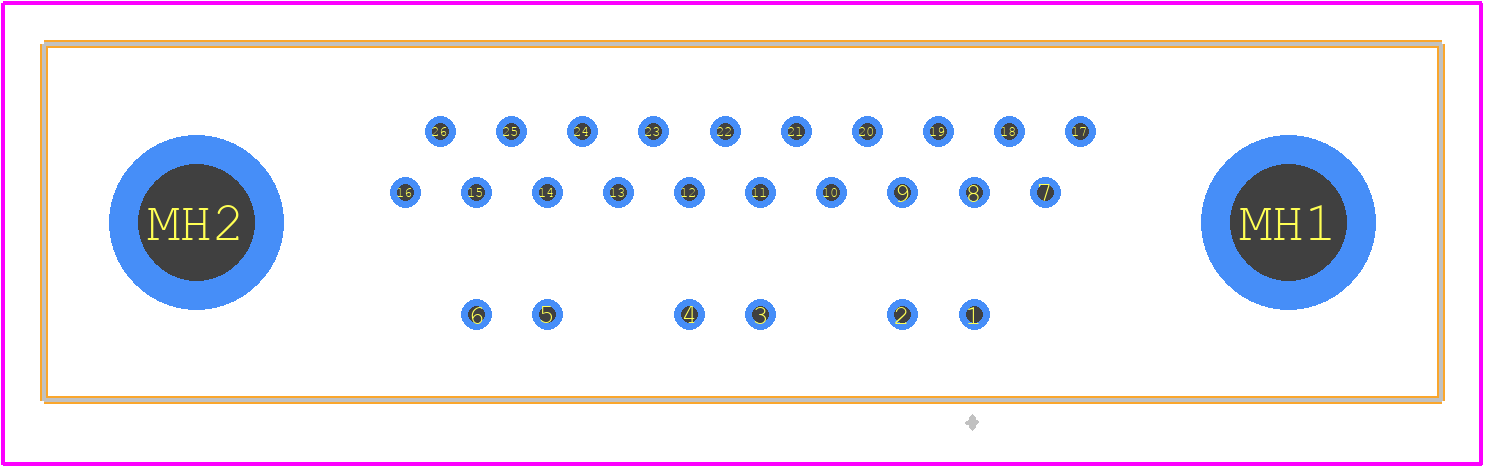

PCB Footprints
HSB-M4-03DM222X - Amphenol PCB footprint - Other - Other - HSB-M4-03DM222X-3
click to zoom
3D Models
HSB-M4-03DM222X - Amphenol - 3D model - Other - HSB-M4-03DM222X-3
click to zoom

HSB-M4-03DM222X Details

  • Manufacturer Part Number:

    HSB-M4-03DM222X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

HSB-M4-03DM222X Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm (5-13 in-lbs) for the screw locks on the HSB-M4-03DM222X connector.
  • Yes, the HSB-M4-03DM222X connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, defense, and industrial automation.
  • Yes, the HSB-M4-03DM222X connector is designed to operate in harsh environments, including high temperatures up to 150°C (302°F) and high humidity. However, it's essential to follow the recommended storage and operating conditions outlined in the datasheet.
  • The HSB-M4-03DM222X connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the HSB-M4-03DM222X connector is part of the HSB series and is compatible with other connectors in the series, allowing for flexibility in design and application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSB-M4-03DM222X Overview

Use the download button to access the HSB-M4-03DM222X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSB-M, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
