HSB-M4-10DM222X - Amphenol

Description: Rectangular MIL Spec Connectors

Download HSB-M4-10DM222X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HSB-M4-10DM222X - Amphenol - PCB symbol
click to zoom
PCB Footprints

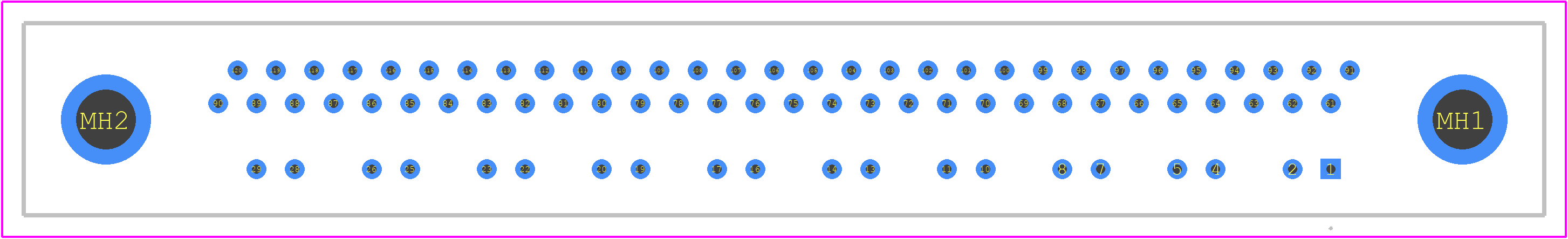

HSB-M4-10DM222X - Amphenol PCB footprint - Other - Other - HSB-M4-10DM222X-3
click to zoom
3D Models
HSB-M4-10DM222X - Amphenol - 3D model - Other - HSB-M4-10DM222X-3
click to zoom

HSB-M4-10DM222X Details

  • Manufacturer Part Number:

    HSB-M4-10DM222X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    80

HSB-M4-10DM222X Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in) as specified in the Amphenol application notes.
  • Yes, the HSB-M4-10DM222X is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) in the frequency range of 2 Hz to 2000 Hz.
  • Yes, the HSB-M4-10DM222X is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress, and can operate in temperatures ranging from -40°C to 125°C.
  • The maximum wire size that can be used with the HSB-M4-10DM222X is 1.5 mm² (16 AWG) as specified in the datasheet.
  • Yes, the HSB-M4-10DM222X is designed to operate in high-temperature environments. It has a temperature rating of 125°C, making it suitable for use in applications such as automotive, industrial, and aerospace.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSB-M4-10DM222X Overview

Use the download button to access the HSB-M4-10DM222X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSB-M, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
