HSDNCSPPCB15A - Amphenol

Description: HSD PCB side Header 4 Pin + 2 MQS Pin North Location Coding C , Vertical,Through hole

Download HSDNCSPPCB15A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HSDNCSPPCB15A - Amphenol - PCB symbol
click to zoom
PCB Footprints

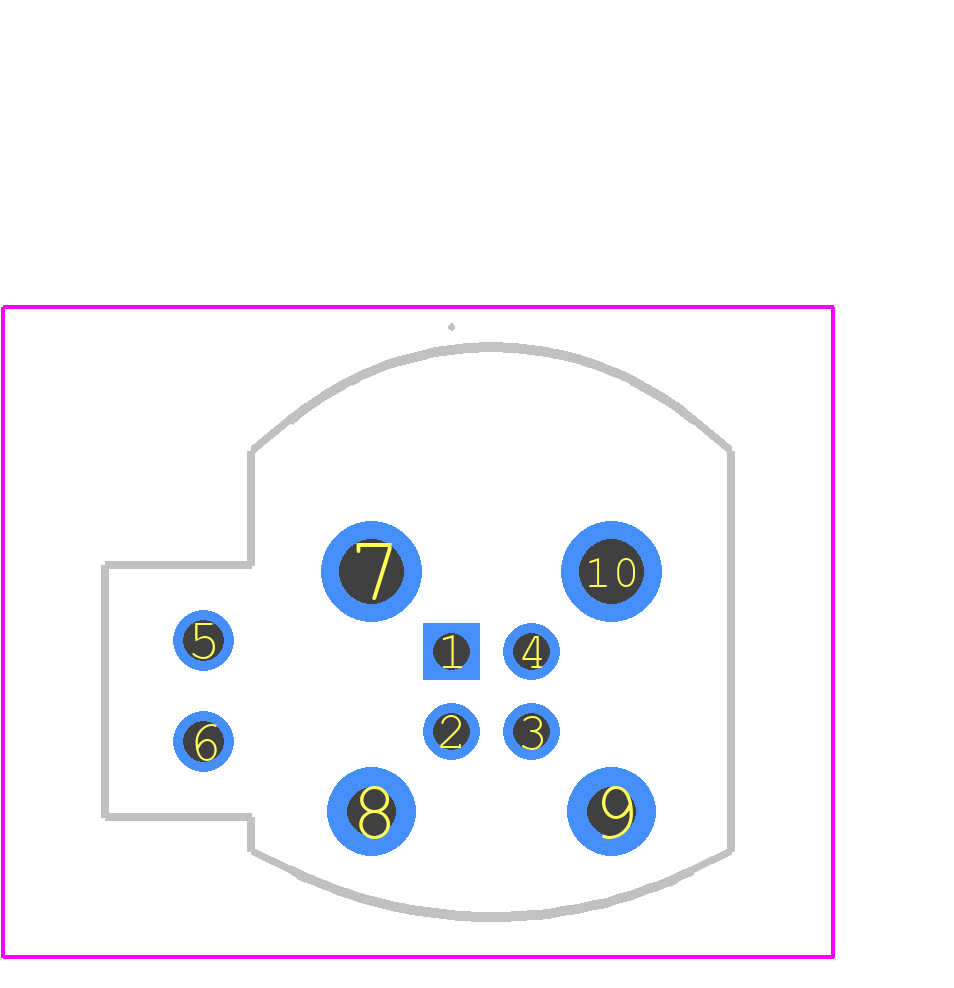

HSDNCSPPCB15A - Amphenol PCB footprint - Other - Other - HSDNCSPPCB15A-3
click to zoom
3D Models
HSDNCSPPCB15A - Amphenol - 3D model - Other - HSDNCSPPCB15A-3
click to zoom

HSDNCSPPCB15A Details

  • Manufacturer Part Number:

    HSDNCSPPCB15A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    8 Weeks, 4 Days

  • Manufacturer:

    Amphenol Corporation

HSDNCSPPCB15A Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Follow the recommended PCB layout and design guidelines provided by Amphenol Corporation, including keeping the PCB thickness within the recommended range, using a solder mask, and ensuring proper clearance around the connector.
  • The maximum operating temperature for the HSDNCSPPCB15A connector is 125°C (257°F), with a storage temperature range of -55°C to 125°C (-69°F to 257°F).
  • Yes, the HSDNCSPPCB15A connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • The recommended torque value for the HSDNCSPPCB15A connector's screw locks is 0.5-1.5 Nm (4-12 in-lbs).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSDNCSPPCB15A Overview

Use the download button to access the HSDNCSPPCB15A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSDNC, or try a keyword search, such as Other Circular Connectors
