HSEC8-120-01-L-PV-4-2 - SAMTEC

Description: Conn High Speed Combo Card Edge SKT 4Power/40Signal POS (2.5mm/4.5)mm/0.8mm Solder ST Thru-Hole/SMD EDGE RATE® Tray

Download HSEC8-120-01-L-PV-4-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HSEC8-120-01-L-PV-4-2 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

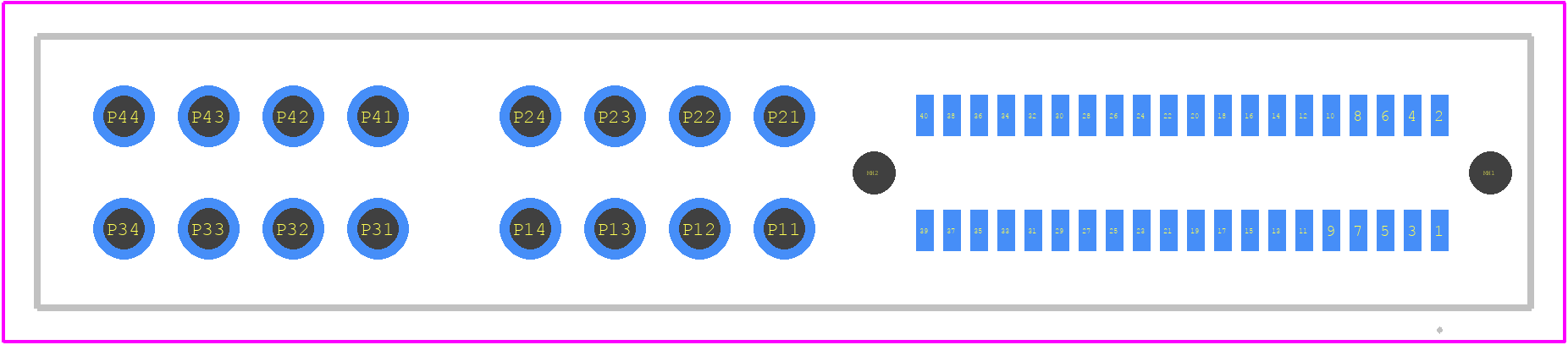

HSEC8-120-01-L-PV-4-2 - SAMTEC PCB footprint - Other - Other - HSEC8-120-01-L-PV-4-2-1
click to zoom
3D Models
HSEC8-120-01-L-PV-4-2 - SAMTEC - 3D model - Other - HSEC8-120-01-L-PV-4-2-1
click to zoom

HSEC8-120-01-L-PV-4-2 Details

  • Manufacturer Part Number:

    HSEC8-120-01-L-PV-4-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    4

  • Body Breadth:

    0.315 inch

  • Body Depth:

    0.599 inch

  • Body Length:

    1.736 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    HYBRID

  • Durability:

    1000 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.032 inch

  • Mating Contact Row Spacing:

    0.069 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current (Signal):

    2.8 A

  • Total Number of Contacts:

    44

HSEC8-120-01-L-PV-4-2 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the HSEC8-120-01-L-PV-4-2 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the HSEC8-120-01-L-PV-4-2 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications such as aerospace, industrial, and automotive.
  • The maximum operating temperature for the HSEC8-120-01-L-PV-4-2 connector is 125°C (257°F). It is designed to operate in a wide range of temperatures, making it suitable for use in various applications.
  • Yes, the HSEC8-120-01-L-PV-4-2 connector is compatible with lead-free soldering processes. It is designed to meet the requirements of RoHS and other environmental regulations.
  • The typical insertion force for the HSEC8-120-01-L-PV-4-2 connector is around 10-15 N (2.2-3.3 lbf) per contact. This may vary depending on the specific application and mating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HSEC8-120-01-L-PV-4-2 Overview

Use the download button to access the HSEC8-120-01-L-PV-4-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSEC8, or try a keyword search, such as Headers and Edge Type Connectors
