HSEC8-120-01-S-RA - SAMTEC

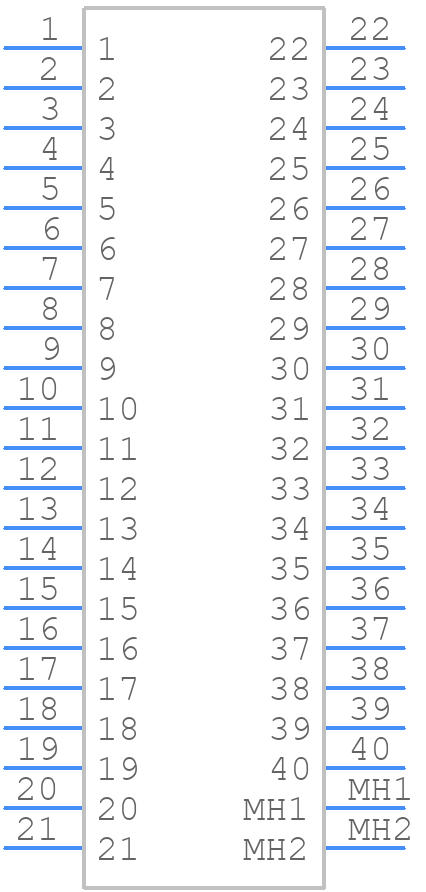

HSEC8-120-01-S-RA Details

• Manufacturer Part Number:

  HSEC8-120-01-S-RA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Mainland China, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  2 Weeks, 5 Days

• Manufacturer:

  Samtec Inc

• YTEOL:

  8

• Additional Feature:

  EDGE RATE

• Body Breadth:

  0.205 inch

• Body Depth:

  0.474 inch

• Body Length:

  0.969 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  GOLD (30) OVER NICKEL

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  BERYLLIUM COPPER

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  CENTRONIC

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.031 inch

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.9558 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  2.6 A

• Terminal Pitch:

  0.8 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40
