HSMN-A400-S4QM2 - Avago Technologies

Description: Blue 470nm LED Indication - Discrete 3.8V 4-PLCC

Download HSMN-A400-S4QM2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

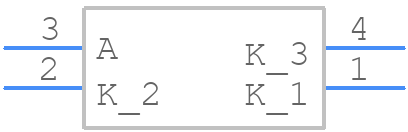

Symbol
HSMN-A400-S4QM2 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
HSMN-A400-S4QM2 - Avago Technologies PCB footprint - Other - Other - HSMN-A400-S4QM2-1
click to zoom
3D Models
HSMN-A400-S4QM2 - Avago Technologies - 3D model - Other - HSMN-A400-S4QM2-1
click to zoom

HSMN-A400-S4QM2 Details

  • Manufacturer Part Number:

    HSMN-A400-S4QM2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, LCC-4

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY, SUPPORTS INFRA RED

  • Color:

    BLUE

  • Color@Wavelength:

    Blue

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    4.6 V

  • JESD-609 Code:

    e3

  • Luminous Intensity-Nom:

    315.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    1.8 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    468 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    2.2 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Silver (Ag)

  • Viewing Angle:

    120 deg
