The recommended PCB layout and thermal management for HSMP-3816-TR1G involves using a 4-layer PCB with a solid ground plane, placing thermal vias under the device, and using a heat sink or thermal pad to dissipate heat. Refer to the application note AN116 for more details.
To optimize the performance of HSMP-3816-TR1G in a high-frequency application, ensure proper impedance matching, use a low-loss PCB material, and minimize parasitic inductance and capacitance. Additionally, use a high-frequency capable layout and consider using a balun or transformer to improve impedance matching.
The maximum operating temperature range for HSMP-3816-TR1G is -40°C to 125°C. However, the device can be operated at a reduced performance level up to 150°C for short periods of time.
To troubleshoot common issues with HSMP-3816-TR1G, check for proper biasing, ensure correct impedance matching, and verify that the device is operated within the recommended operating conditions. Also, check for any signs of physical damage or contamination.
Yes, HSMP-3816-TR1G can be used in a non-50 ohm system, but impedance matching may be required to achieve optimal performance. Consult the datasheet and application notes for guidance on impedance matching and circuit design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HSMP-3816-TR1G Overview

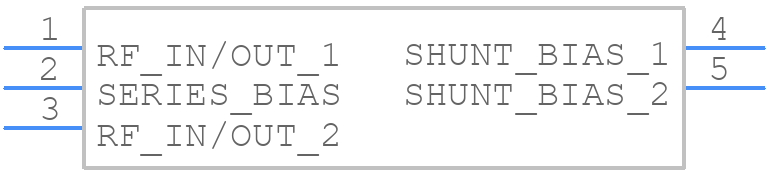

Use the download button to access the HSMP-3816-TR1G schematic symbol, PCB footprint, and 3D model.
