HSMS-A100-J00J1 - Avago Technologies

Description: LED,SMD Chip,HSMG-A100-J00J1

Download HSMS-A100-J00J1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HSMS-A100-J00J1 - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

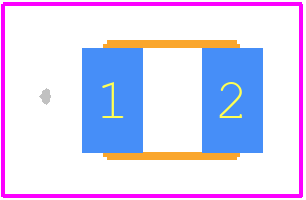

HSMS-A100-J00J1 - Avago Technologies PCB footprint - Other - Other - HSMS-A100-J00J1-2
click to zoom

HSMS-A100-J00J1 Details

  • Manufacturer Part Number:

    HSMS-A100-J00J1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, LCC-2

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY, SUPPORTS INFRA RED

  • Color:

    RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e3

  • Luminous Intensity-Min:

    0.0045 cd

  • Luminous Intensity-Nom:

    15.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    1.8 mm

  • Packing Method:

    TAPE AND REEL 7"

  • Peak Wavelength:

    635 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    2.2 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    3 mm

  • Viewing Angle:

    120 deg

HSMS-A100-J00J1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the HSMS-A100-J00J1 is -40°C to 125°C.
  • To ensure reliable operation in high-vibration environments, it is recommended to follow proper mounting and soldering techniques, and to use a robust PCB design that can withstand vibrations.
  • The maximum power handling capability of the HSMS-A100-J00J1 is 100 mW. Exceeding this power rating may cause damage to the device.
  • To troubleshoot issues with the HSMS-A100-J00J1, check for proper power supply, signal integrity, and PCB design. Use oscilloscopes and signal analyzers to debug signal issues, and consult the datasheet and application notes for guidance.
  • No, the HSMS-A100-J00J1 is a RoHS-compliant device, and it is not recommended to use it in non-RoHS compliant applications. Using it in such applications may violate environmental regulations.
