HSP45102SC-33Z - Renesas Electronics

Description: The Intersil HSP45102 is Numerically Controlled Oscillator (NCO12) with 32-bit frequency resolution and 12-bit output. With over 69dB of spurious free dynamic range and worst case frequency resolution of 0. 009Hz, the NCO12 provides significant accuracy for frequency synthesis solutions at a competitive price. The frequency to be generated is selected from two frequency control words. A single control pin selects which word is used to determine the output frequency. Switching from one frequency to another o

Download HSP45102SC-33Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

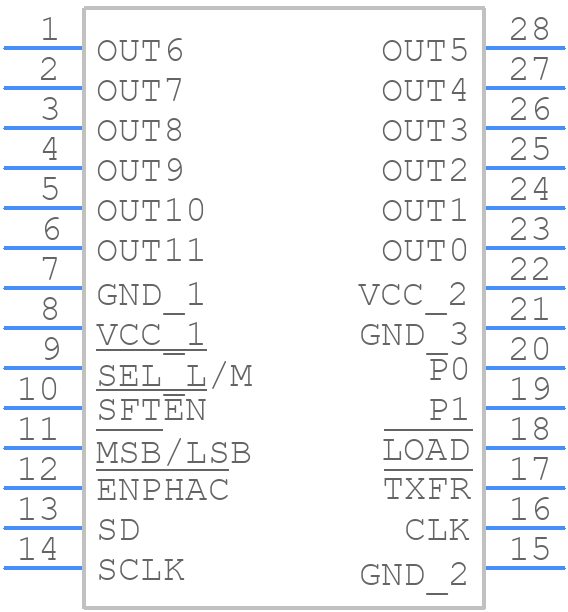

Symbol
HSP45102SC-33Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HSP45102SC-33Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M28.3
click to zoom
3D Models
HSP45102SC-33Z - Renesas Electronics - 3D model - Small Outline Packages - M28.3
click to zoom

HSP45102SC-33Z Details

  • Manufacturer Part Number:

    HSP45102SC-33Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    OFFSET BINARY OUTPUT

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    33 MHz

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Data Bus Width:

    12

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    99 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR

HSP45102SC-33Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Also, consider derating the operating frequency and voltage to reduce power consumption and heat generation.
  • Operating the device beyond the recommended conditions can lead to reduced reliability, increased power consumption, and potential damage to the device. It's essential to follow the recommended operating conditions to ensure reliable operation and prevent premature failure.
  • Check the power supply voltage and ensure it meets the recommended specifications. Verify that the POR pin is properly connected and not loaded with excessive capacitance. Also, check for any noise or glitches on the power supply lines that may be causing the POR circuitry to malfunction.
  • Use a shielded enclosure and ensure good grounding of the PCB and device. Minimize the length of signal traces and use twisted pairs or shielded cables for external connections. Also, consider adding EMI filters or ferrite beads to reduce radiation and susceptibility to external interference.
