Description:The Intersil HSP45102 is Numerically Controlled Oscillator (NCO12) with 32-bit frequency resolution and 12-bit output. With over 69dB of spurious free dynamic range and worst case frequency resolution of 0. 009Hz, the NCO12 provides significant accuracy for frequency synthesis solutions at a competitive price. The frequency to be generated is selected from two frequency control words. A single control pin selects which word is used to determine the output frequency. Switching from one frequency to another o
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The HSP45102SC-40Z has an internal overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry to ensure reliable operation. This can be achieved using a sense resistor and a comparator or an overcurrent protection IC.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor (e.g., X5R or X7R) to ensure stable operation and minimize voltage ripple.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding cans to minimize electromagnetic interference.
The maximum operating temperature range for the HSP45102SC-40Z is -40°C to +125°C, but it's recommended to derate the device's performance and consider thermal management strategies for high-temperature applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HSP45102SC-40Z Overview

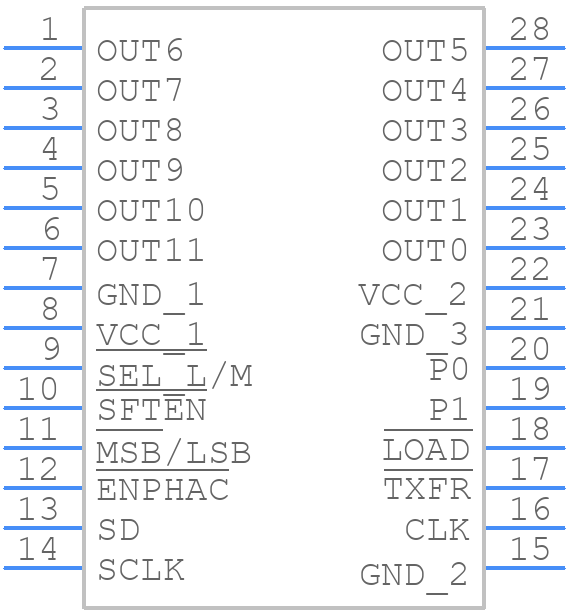

Use the download button to access the HSP45102SC-40Z schematic symbol, PCB footprint, and 3D model.
