HSW2-272VHDR+ Frequently Asked Questions (FAQs)

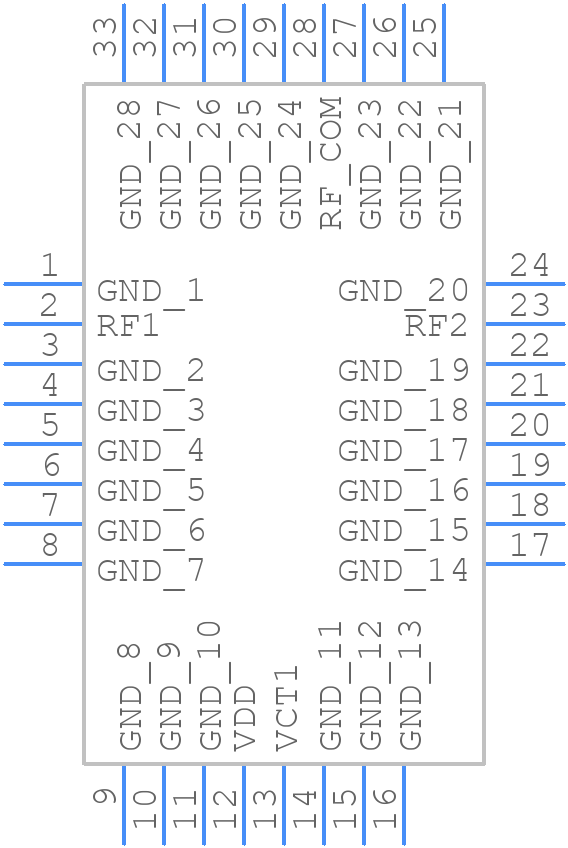

• What is the recommended PCB layout and footprint for the HSW2-272VHDR+?
  Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
• How do I achieve the specified isolation between the RF ports?
  To achieve the specified isolation between the RF ports, it's crucial to use a good quality PCB material with a high dielectric constant, such as Rogers 4350 or equivalent. Additionally, ensure that the PCB layout is symmetrical, and the RF traces are well-separated and shielded.
• What is the maximum operating temperature range for the HSW2-272VHDR+?
  The maximum operating temperature range for the HSW2-272VHDR+ is -40°C to +85°C. However, it's recommended to derate the power handling and operating frequency at higher temperatures to ensure reliable operation and prevent thermal damage.
• Can I use the HSW2-272VHDR+ in a non-50 ohm system?
  While the HSW2-272VHDR+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some limitations. However, the impedance mismatch may affect the switch's performance, and additional impedance matching networks may be required to achieve optimal results.
• What is the recommended switching speed for the HSW2-272VHDR+?
  The recommended switching speed for the HSW2-272VHDR+ is 1-2 ms. Faster switching speeds may cause electrical overstress and reduce the switch's lifespan. Slower switching speeds may not fully utilize the switch's capabilities.
