- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HSWA2-63DR+
- Part Number HSWA2-63DR+
- Manufacturer Mini-Circuits
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - HSWA2-63DR+-2
- Released Date May 30, 2019
- Last Modified Date Oct 24, 2025 4:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
HSWA2-63DR+ Details
-
Manufacturer Part Number:
HSWA2-63DR+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.3
-
1dB Compression Point:
35 dBm
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
30 dBm
-
Insertion Loss-Max:
1.9 dB
HSWA2-63DR+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a general guideline for impedance matching in their application notes, but the specific values will depend on the system's impedance and frequency range.
-
The maximum power handling of the HSWA2-63DR+ is not explicitly stated in the datasheet, but it's typically limited by the device's thermal characteristics. As a general rule, the power handling should not exceed 1W. However, it's recommended to consult with Mini-Circuits' application engineers for specific guidance on power handling.
-
The HSWA2-63DR+ is a commercial-grade component, and its reliability and performance in high-reliability or space-constrained applications may vary. It's recommended to consult with Mini-Circuits' application engineers to discuss the feasibility of using the HSWA2-63DR+ in such applications and to explore potential alternatives.
-
Troubleshooting issues with the HSWA2-63DR+ typically involves checking the device's soldering, PCB layout, and impedance matching. It's also essential to verify that the device is operated within its specified frequency range and power handling limits. If issues persist, consult with Mini-Circuits' application engineers for further guidance.
Trust Checks
Expert Contribution
System Verified
Community Approved
HSWA2-63DR+ Overview

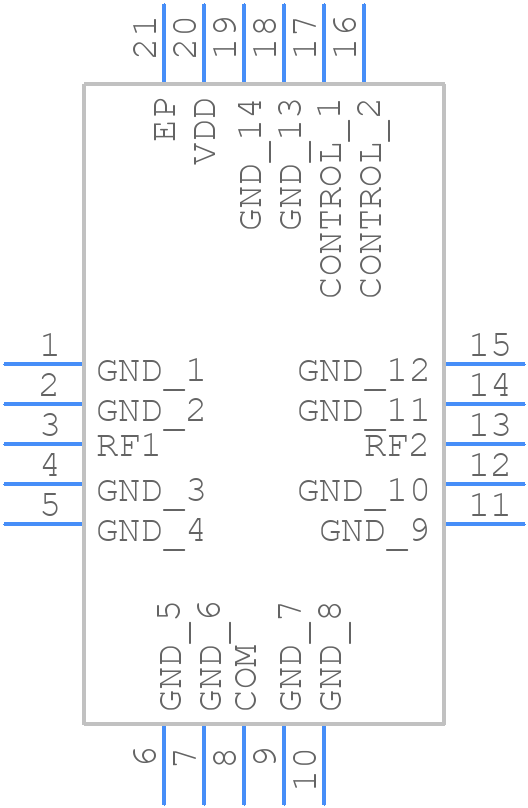

Use the download button to access the HSWA2-63DR+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSWA2,
or try a keyword search, such as RF/Microwave Switches
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
