- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HSWA4-63DR+
- Part Number HSWA4-63DR+
- Manufacturer Mini-Circuits
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - DG984-1
- Released Date May 31, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HSWA4-63DR+ Details
-
Manufacturer Part Number:
HSWA4-63DR+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
SP4T
-
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
HSWA4-63DR+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
Impedance matching is critical for optimal performance. Mini-Circuits provides a set of recommended impedance matching circuits in their application notes. You can also use simulation tools like ADS or AWR to design a custom impedance matching network.
-
The HSWA4-63DR+ is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to operate it within a temperature range of 0°C to 70°C for optimal performance.
-
While the HSWA4-63DR+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, it's essential to ensure that the device is not subjected to excessive voltage or current stress, and that the switching frequency is within the device's bandwidth.
-
Mini-Circuits recommends a soldering profile with a peak temperature of 260°C for a maximum of 10 seconds. It's essential to follow a controlled soldering process to prevent damage to the device.
Trust Checks
Expert Contribution
System Verified
Community Approved
HSWA4-63DR+ Overview

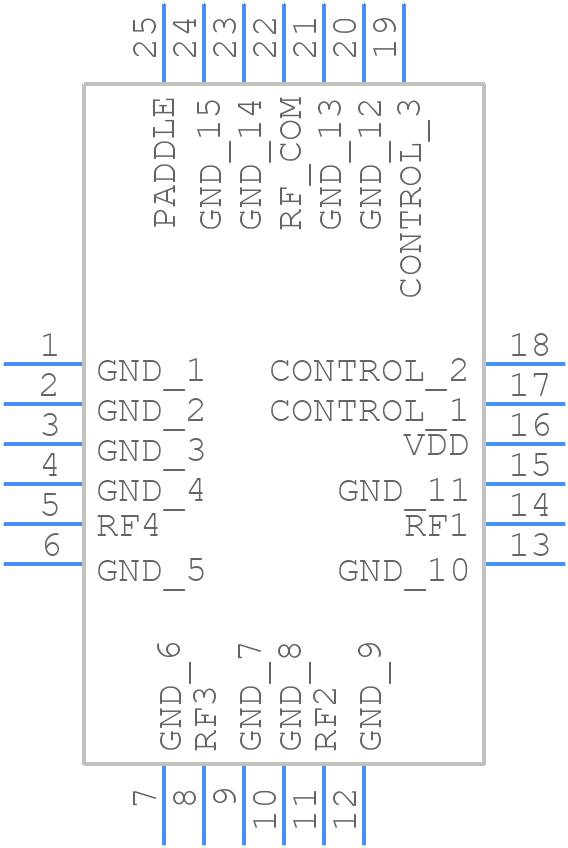

Use the download button to access the HSWA4-63DR+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HSWA4,
or try a keyword search, such as RF/Microwave Switches
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
