HT12D footprint, schematic symbol and 3D model by Holtek

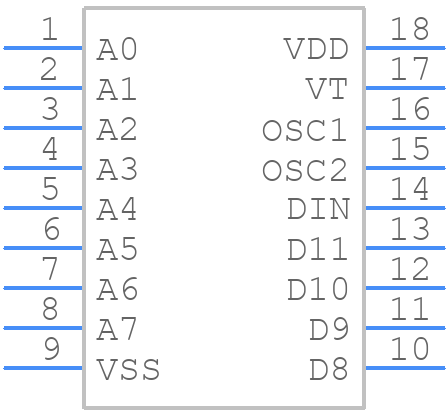

Symbol

PCB Footprints

3D Models

HT12D Details

The maximum transmission distance of the HT12D depends on the transmission frequency, antenna design, and environment. However, in general, it can transmit up to 100 meters in open space.
The transmission frequency depends on the application and environment. For general use, 433 MHz or 315 MHz are common frequencies. For specific applications, such as garage door openers, 390 MHz is often used. Consult local regulations and consider frequency hopping for better reliability.
The HT12D has a data transmission rate of up to 2.4 kbps, which is suitable for most remote control applications.
To ensure reliable data transmission, use a suitable antenna design, ensure proper power supply decoupling, and implement error-checking mechanisms such as checksums or CRC in your transmission protocol.
No, the HT12D is a one-way encoder, designed for transmitting data from a transmitter to a receiver. For bi-directional communication, consider using a transceiver IC or a different communication protocol.

Community Provided

System Verified

Community Approved

Use the download button to access the HT12D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Remote Control ICs
