HT1621B(48SSOP) footprint, schematic symbol and 3D model by Holtek

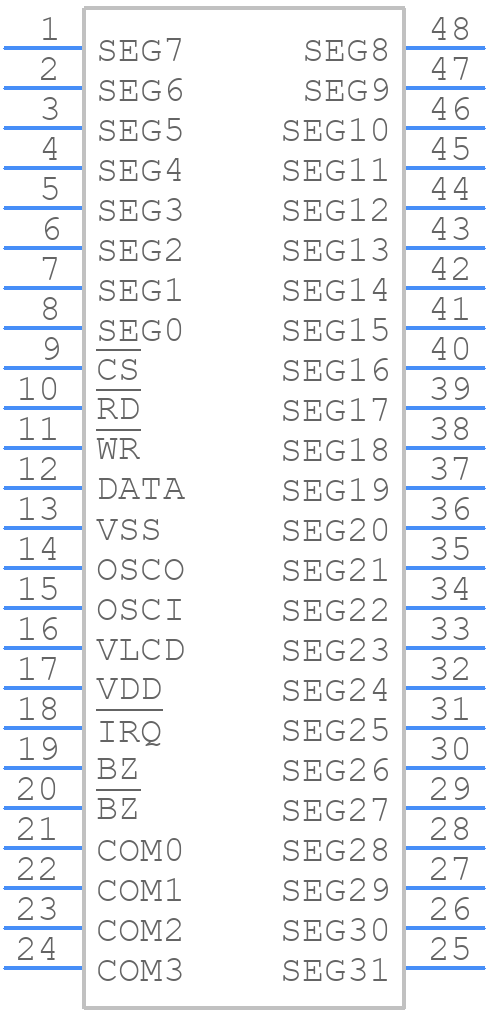

Symbol

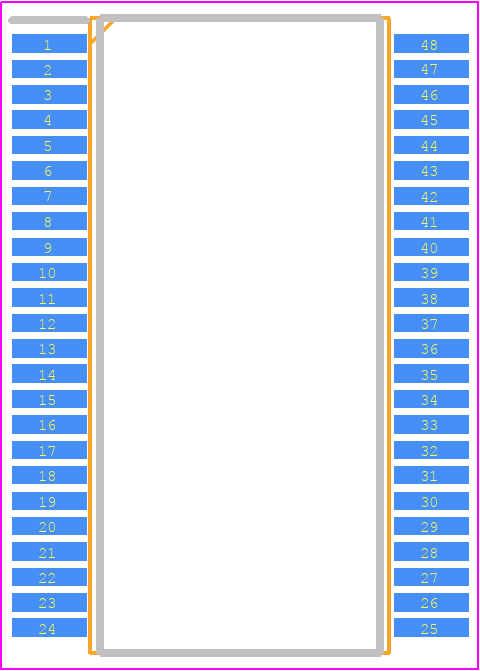

PCB Footprints

3D Models

HT1621B(48SSOP) Details

The recommended operating voltage range for the HT1621B is 2.7V to 5.5V.
The HT1621B can be configured for I2C or SPI interface by setting the appropriate pins (e.g. SCL/SDA for I2C or SCK/MOSI for SPI) and configuring the device through software commands.
The maximum clock frequency supported by the HT1621B is 400 kHz for I2C and 10 MHz for SPI.
The HT1621B has built-in POR and BOR features that can be enabled or disabled through software commands. The POR feature resets the device when the power supply voltage falls below a certain threshold, while the BOR feature resets the device when the power supply voltage drops below a certain threshold for a certain period of time.
The internal oscillator in the HT1621B provides a clock signal for the device, allowing it to operate without an external clock source. The oscillator frequency can be adjusted through software commands.

Community Provided

System Verified

Community Approved

Use the download button to access the HT1621B(48SSOP) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HT162, or try a keyword search, such as Display Drivers
