- Part Number HT1622
- Manufacturer Holtek
- Pin Count 64
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - 64-pin QFP (1420)
- Released Date Sep 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HT1622 Details
-
Manufacturer Part Number:
HT1622
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Holtek Semiconductor Inc
HT1622 Frequently Asked Questions (FAQs)
-
The maximum clock frequency for the HT1622 is 10MHz.
-
The HT1622 can be initialized by sending a reset command (0x80) followed by a command to set the display mode (e.g. 0x04 for 4-common anode display).
-
The RES pin is used to reset the HT1622. When the RES pin is pulled low, the HT1622 is reset and all internal registers are cleared.
-
No, the HT1622 is designed to operate at 2.5V to 3.6V. Using a 5V power supply may damage the device.
-
The display data can be updated by sending a command to set the display data (e.g. 0x01) followed by the display data bytes.
Trust Checks
Community Provided
System Verified
Community Approved
HT1622 Overview

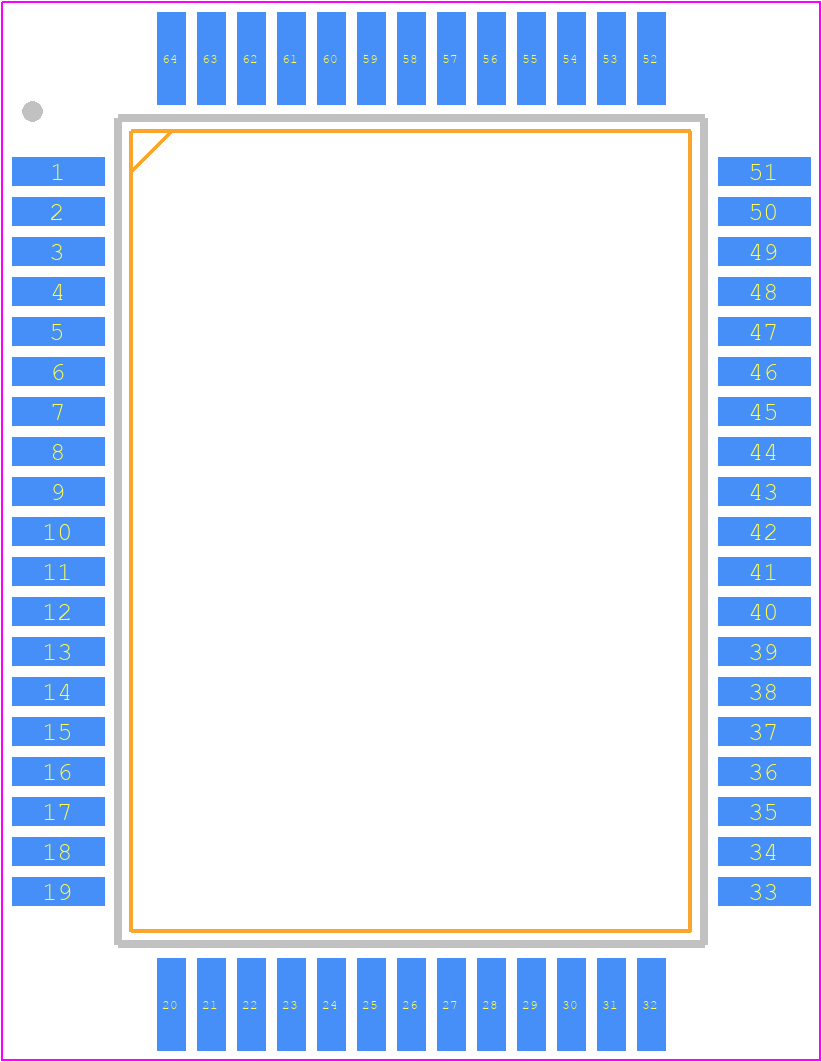

Use the download button to access the HT1622 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HT162,
or try a keyword search, such as Display Controllers
