- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HT1632C
- Part Number HT1632C
- Manufacturer Holtek
- Pin Count 52
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

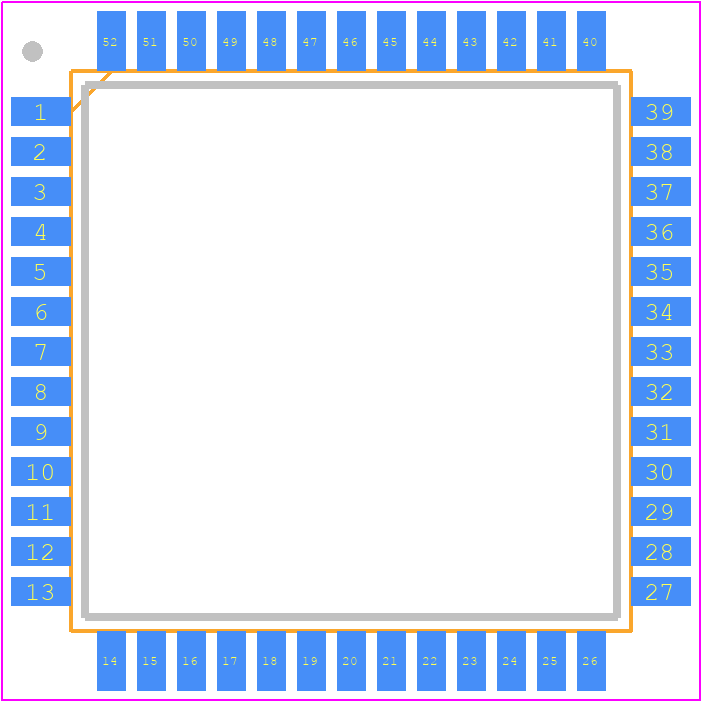

- Footprint Name Quad Flat Packages - HT1632C
- Released Date May 27, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HT1632C Details
-
Manufacturer Part Number:
HT1632C
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Holtek Semiconductor Inc
-
YTEOL:
0
HT1632C Frequently Asked Questions (FAQs)
-
The maximum frequency of the clock signal that can be used with the HT1632C is 1 MHz.
-
The HT1632C can be initialized by sending a reset pulse to the RST pin, followed by a series of commands to set the display mode, brightness, and other parameters.
-
The COM (Common) pins are used to connect to the common cathode of the LED segments, while the SEG (Segment) pins are used to connect to the individual segments of the LED display.
-
The display content can be updated by sending a series of commands to the HT1632C, including the display data, address, and control commands.
-
The power consumption of the HT1632C depends on the operating mode and the display content, but it is typically in the range of 10-50 mA.
Trust Checks
Community Provided
System Verified
Community Approved
HT1632C Overview
Use the download button to access the HT1632C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HT163,
or try a keyword search, such as Display Controllers
