Part Image

HT16K33(28SOP-A) - Holtek

Description: 28-pin SOP (300mil) Outline Dimensions

Download HT16K33(28SOP-A) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HT16K33(28SOP-A) model

Email notifications will be applied after download.

Send part feedback

Symbol

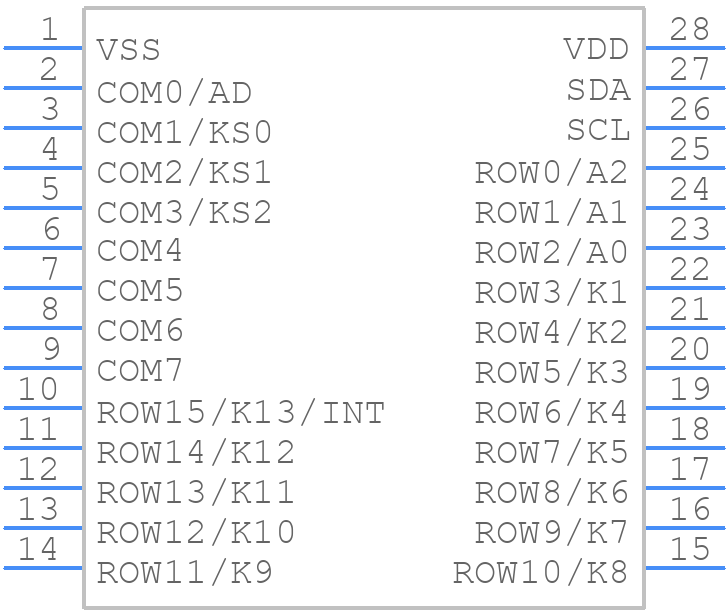

HT16K33(28SOP-A) - Holtek - PCB symbol

PCB Footprints

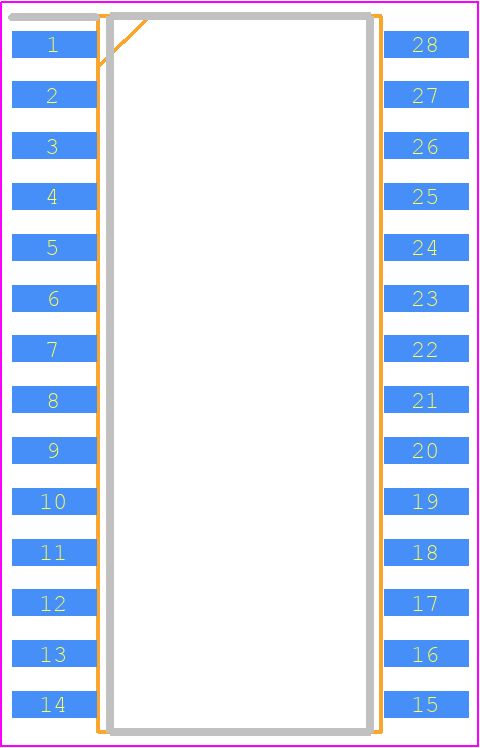

HT16K33(28SOP-A) - Holtek PCB footprint - Small Outline Packages - Small Outline Packages - HT16K33cgc

3D Models

HT16K33(28SOP-A) - Holtek - 3D model - Small Outline Packages - HT16K33cgc

Datasheet Download Datasheet
Stock & Prices Price & Stock for HT16K33(28SOP-A)
Part Number HT16K33(28SOP-A)
Manufacturer Holtek
Pin Count 28
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - HT16K33cgc
Released Date Oct 4, 2023
Last Modified Date Oct 4, 2023 10:31 AM UTC
Pinout / Pin List Click Here (Member Only)

HT16K33(28SOP-A) Details

Manufacturer Part Number:
HT16K33(28SOP-A)
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Holtek Semiconductor Inc
YTEOL:
0

Trust Checks

Community Provided

System Verified

Community Approved

HT16K33(28SOP-A) Overview

Use the download button to access the HT16K33(28SOP-A) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HT16K, or try a keyword search, such as Display Drivers
