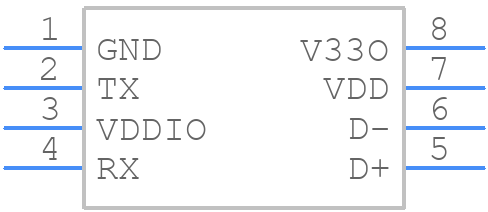

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HT42B534-1
- Part Number HT42B534-1
- Manufacturer Holtek
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8-pin SOP
- Released Date Dec 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HT42B534-1 Details
-
Manufacturer Part Number:
HT42B534-1
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Holtek Semiconductor Inc
-
YTEOL:
0
-
uPs/uCs/Peripheral ICs Type:
BUS CONTROLLER, UNIVERSAL SERIAL BUS
Trust Checks
Community Provided
System Verified
Community Approved
HT42B534-1 Overview
Use the download button to access the HT42B534-1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HT42B,
or try a keyword search, such as Bus Controllers
