HT42B534-2 - Holtek

Description: The HT42B534-x device is a high performance USB to UART bridge controller with fully integrated USB and UART interface functions, designed for applications that communicate with various types of UART. The device includes a USB 2.0 full speed compatible interface which is used for PC communication. The device also includes a fully integrated high speed oscillator which is used as clock source for the USB and UART baud rate generator. The baud rate generator can support up to 3Mbps of baud rate for

Download HT42B534-2 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HT42B534-2 model

Email notifications will be applied after download.

Send part feedback

Symbol

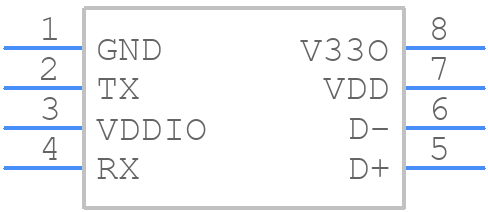

HT42B534-2 - Holtek - PCB symbol

PCB Footprints

HT42B534-2 - Holtek PCB footprint - Small Outline Packages - Small Outline Packages - sop-8

3D Models

HT42B534-2 - Holtek - 3D model - Small Outline Packages - sop-8

Datasheet Download Datasheet
Stock & Prices Price & Stock for HT42B534-2
Part Number HT42B534-2
Manufacturer Holtek
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - sop-8
Released Date Jan 5, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HT42B534-2 Details

Manufacturer Part Number:
HT42B534-2
Part Life Cycle Code:
Not Recommended
HTS Code:
8542.31.00.30
Manufacturer:
Holtek Semiconductor Inc
YTEOL:
3
uPs/uCs/Peripheral ICs Type:
BUS CONTROLLER, UNIVERSAL SERIAL BUS

Trust Checks

Community Provided

System Verified

Community Approved

HT42B534-2 Overview

Use the download button to access the HT42B534-2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HT42B, or try a keyword search, such as Bus Controllers
