- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HT66F0185
- Part Number HT66F0185
- Manufacturer Holtek
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages

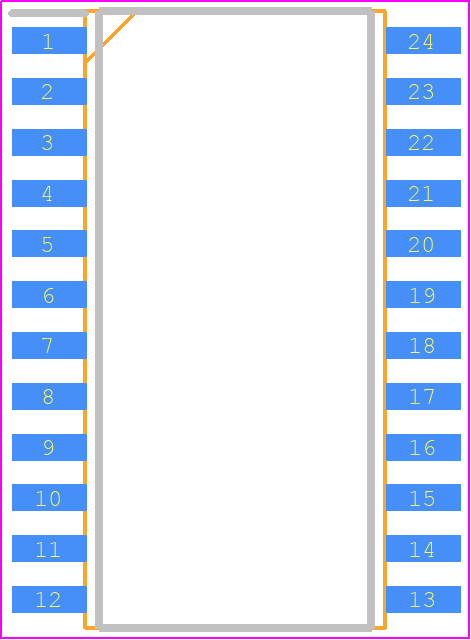

- Footprint Name Small Outline Packages - 24-pin SOP (300mil)
- Released Date Aug 28, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HT66F0185 Details
-
Manufacturer Part Number:
HT66F0185
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Holtek Semiconductor Inc
-
YTEOL:
7.1
-
uPs/uCs/Peripheral ICs Type:
SOC
HT66F0185 Frequently Asked Questions (FAQs)
-
The recommended oscillator crystal frequency for the HT66F0185 is 4MHz or 8MHz, depending on the application and clock speed requirements.
-
To configure the HT66F0185 for low power consumption, set the Power Down mode (PD) bit in the PMR register, and adjust the clock frequency and voltage regulator settings according to the application requirements.
-
The maximum current that can be sourced or sunk by the I/O pins of the HT66F0185 is 20mA, but it is recommended to limit the current to 10mA or less to ensure reliable operation.
-
The HT66F0185 has a built-in watchdog timer that can be enabled by setting the WDTEN bit in the WDTCTL register. The watchdog timer can be configured to reset the device or generate an interrupt if the timer expires.
-
The maximum operating temperature range for the HT66F0185 is -40°C to 85°C, but it is recommended to operate the device within the range of 0°C to 70°C for optimal performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
HT66F0185 Overview

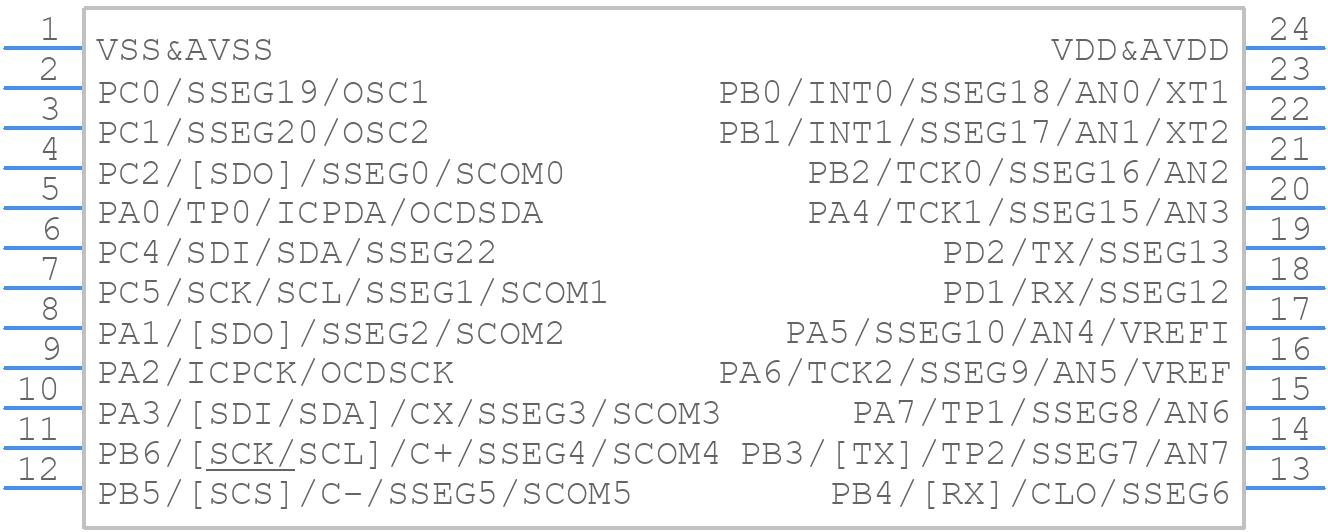

Use the download button to access the HT66F0185 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HT66F,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
