HT8950 - Holtek

Description: Voice modulator

Download HT8950 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

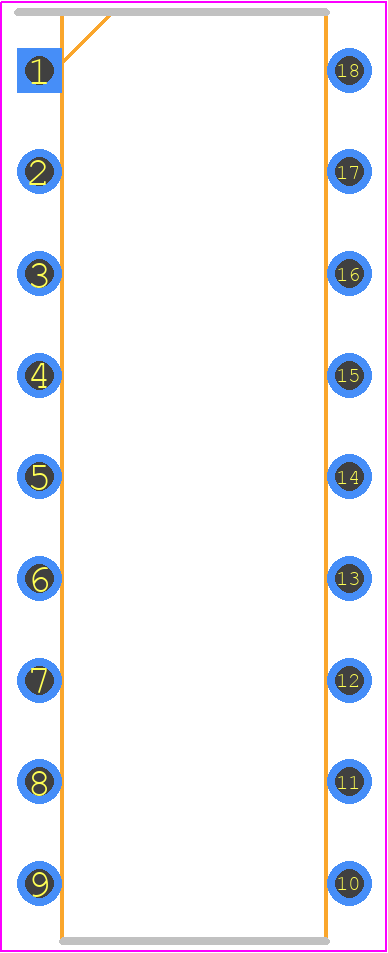

HT8950 - Holtek PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 18-pin DIP (300mil)_2021
click to zoom
3D Models
HT8950 - Holtek  - 3D model - Dual-In-Line Packages - 18-pin DIP (300mil)_2021
click to zoom

HT8950 Details

  • Manufacturer Part Number:

    HT8950

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Holtek Semiconductor Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e0

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    10 mA

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL
