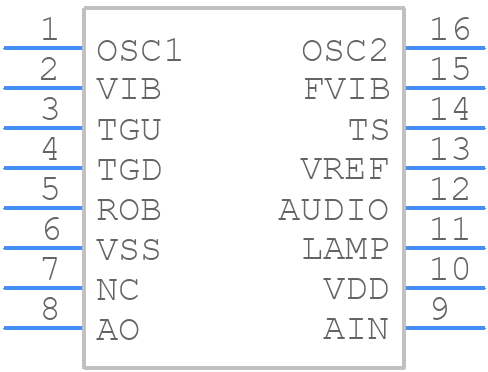

HT8950A - Holtek - PCB symbol
click to zoom
PCB Footprints

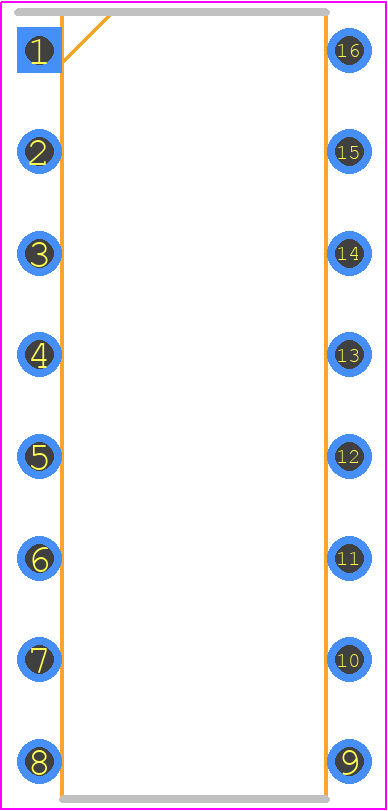

HT8950A - Holtek PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - HT8950A_11
click to zoom
3D Models
HT8950A - Holtek - 3D model - Dual-In-Line Packages - HT8950A_11
click to zoom

HT8950A Details

  • Manufacturer Part Number:

    HT8950A

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Holtek Semiconductor Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    10 mA

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL
