HT9170B - Holtek

Description: DTMF Receiver, DIP-18

Download HT9170B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

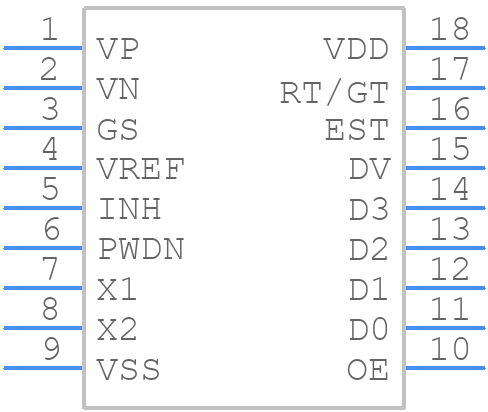

HT9170B - Holtek - PCB symbol
click to zoom
PCB Footprints

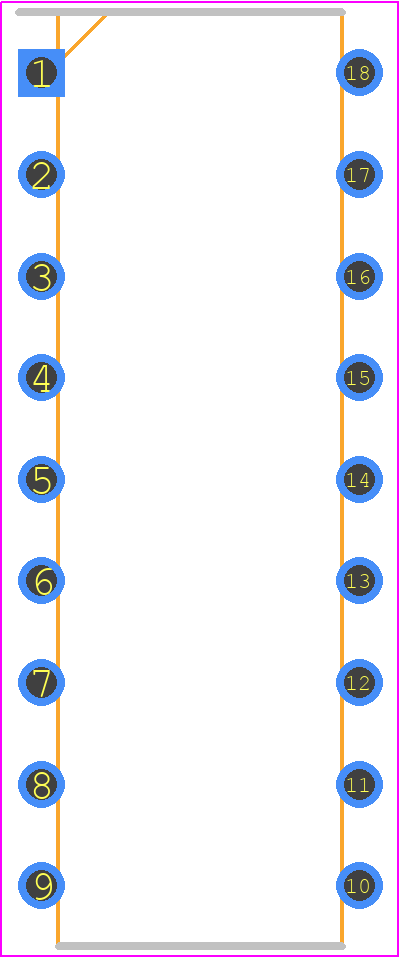

HT9170B - Holtek PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 18-pin DIP (300mil)
click to zoom
3D Models
HT9170B - Holtek - 3D model - Dual-In-Line Packages - 18-pin DIP (300mil)
click to zoom

HT9170B Details

  • Manufacturer Part Number:

    HT9170B

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-18

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Holtek Semiconductor Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    22.86 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Telecom IC Type:

    DTMF SIGNALING CIRCUIT

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

HT9170B Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HT9170B is 2.4V to 5.5V, with a typical voltage of 3.3V or 5V.
  • The HT9170B can be configured for different microphone types by adjusting the gain setting and the bias voltage. The datasheet provides a table to select the appropriate gain setting and bias voltage for different microphone types.
  • The maximum input signal amplitude that the HT9170B can handle is 2.5Vpp (peak-to-peak) for a 3.3V supply voltage and 3.5Vpp for a 5V supply voltage.
  • To reduce noise and hum in the audio signal, it is recommended to use a decoupling capacitor between the VCC and GND pins, and to keep the analog and digital grounds separate. Additionally, using a shielded cable for the microphone connection can also help to reduce noise and hum.
  • Yes, the HT9170B can be used in a stereo audio application by using two devices, one for the left channel and one for the right channel. The datasheet provides an example circuit diagram for a stereo audio application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HT9170B Overview

Use the download button to access the HT9170B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HT917, or try a keyword search, such as Telecom Signaling Circuits
