HTSS-107-01-G-D - SAMTEC

Description: 14 Positions Header Connector Through Hole

Download HTSS-107-01-G-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HTSS-107-01-G-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

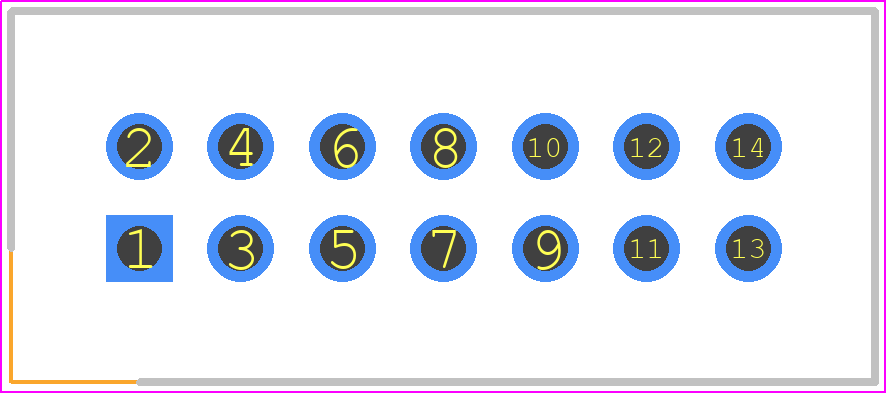

HTSS-107-01-G-D - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 21.59
click to zoom
3D Models
HTSS-107-01-G-D - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - 21.59
click to zoom

HTSS-107-01-G-D Details

  • Manufacturer Part Number:

    HTSS-107-01-G-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

HTSS-107-01-G-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
  • Yes, the HTSS-107-01-G-D connector is designed to withstand high-vibration environments. Samtec's HTSS series connectors have undergone rigorous testing and meet the requirements of various industry standards, including IEC 61373 Cat. 2, which covers vibration testing.
  • The operating temperature range of the HTSS-107-01-G-D connector is -55°C to 125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the HTSS-107-01-G-D connector is compatible with lead-free soldering processes. Samtec's HTSS series connectors are designed to meet the requirements of RoHS and WEEE directives, and they can withstand the higher temperatures associated with lead-free soldering.
  • The mating cycle life of the HTSS-107-01-G-D connector is 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
