HTST-105-04-G-D-RA - SAMTEC

Description: Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip, Cable Mate

Download HTST-105-04-G-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HTST-105-04-G-D-RA - SAMTEC - PCB symbol
click to zoom
PCB Footprints

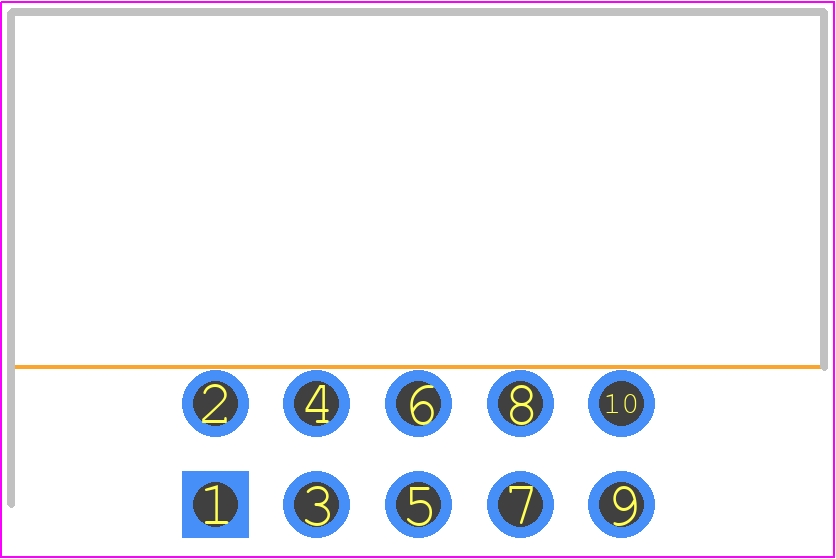

HTST-105-04-G-D-RA - SAMTEC PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - HTST-105-04-G-D-RA
click to zoom
3D Models
HTST-105-04-G-D-RA - SAMTEC - 3D model - Header, Shrouded - Right Angle PTH Box - HTST-105-04-G-D-RA
click to zoom

HTST-105-04-G-D-RA Details

  • Manufacturer Part Number:

    HTST-105-04-G-D-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

HTST-105-04-G-D-RA Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the HTST-105-04-G-D-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the HTST-105-04-G-D-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the HTST-105-04-G-D-RA connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, the HTST-105-04-G-D-RA connector is RoHS and REACH compliant, meeting the European Union's directives for restriction of hazardous substances and registration, evaluation, authorization, and restriction of chemicals.
  • The HTST-105-04-G-D-RA connector has a moisture-resistant design, but it's not intended for immersion in water or exposure to high humidity without proper sealing or protection. Samtec recommends following their guidelines for environmental sealing and protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HTST-105-04-G-D-RA Overview

Use the download button to access the HTST-105-04-G-D-RA schematic symbol, PCB footprint, and 3D model.
