The recommended mating sequence is to mate the connectors in a perpendicular motion, ensuring the guide pins on the plug are aligned with the guide pin cavities on the receptacle. Apply gentle pressure while mating the connectors to prevent damage.
To ensure proper seating, make sure the connectors are mated in a perpendicular motion, and the guide pins are fully seated in their cavities. You can also use a mating force gauge to verify the required force is within the specified range.
Samtec recommends using a soft, dry brush to remove any debris or contamination from the connector. For more thorough cleaning, a mild detergent and deionized water can be used. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning methods.
Yes, the HTST-110-04-G-D-RA connector is designed to withstand vibrations up to 20 G's per IEC 61373. However, it's essential to ensure that the connectors are properly mated and secured to prevent damage or disconnection due to vibration.
The HTST-110-04-G-D-RA connector has an operating temperature range of -55°C to 125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its specified temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HTST-110-04-G-D-RA Overview

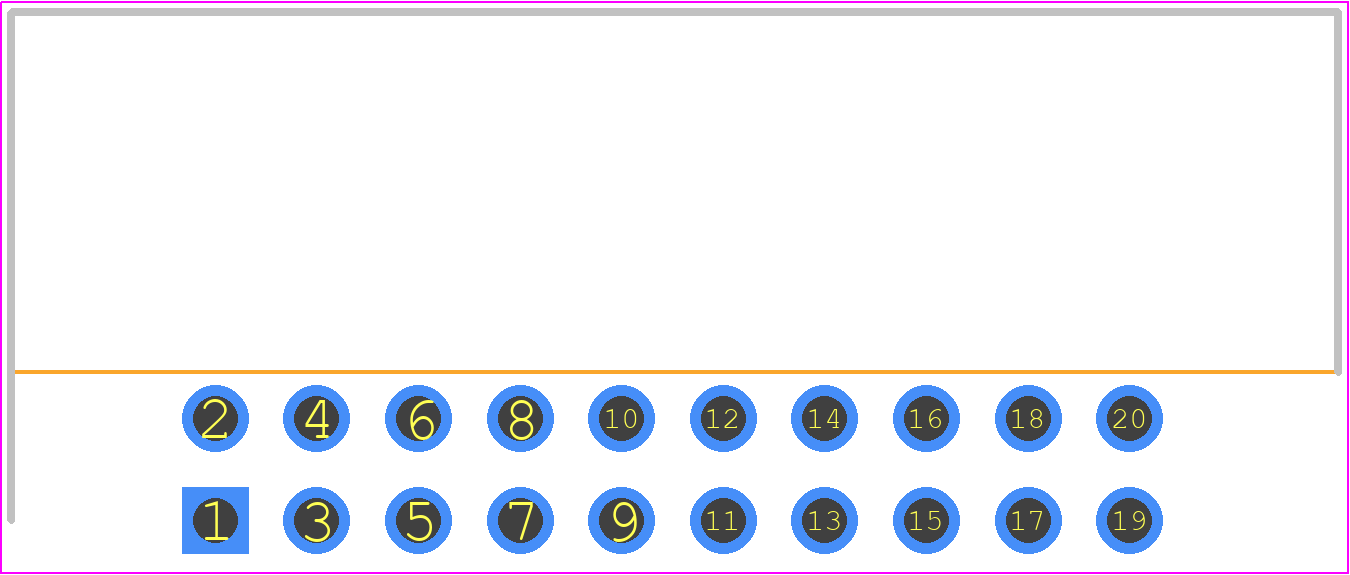

Use the download button to access the HTST-110-04-G-D-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HTST-,
or try a keyword search, such as Headers and Edge Type Connectors
