HTST-120-04-L-D-RA - SAMTEC

Description: Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm) , 3.4A , -55°C ~ 125°C

Download HTST-120-04-L-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HTST-120-04-L-D-RA - SAMTEC - PCB symbol
click to zoom
PCB Footprints

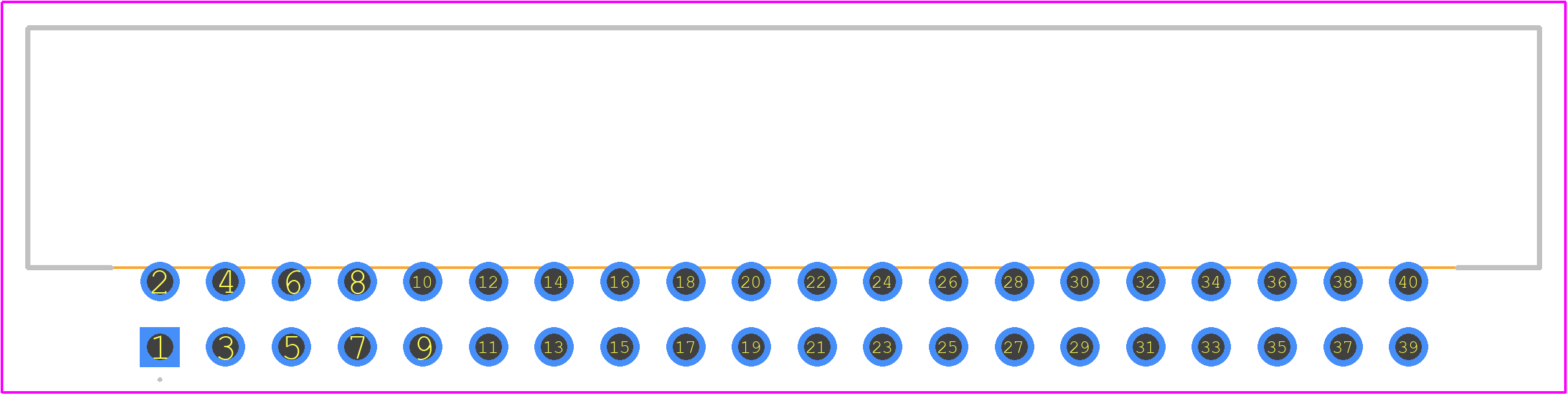

HTST-120-04-L-D-RA - SAMTEC PCB footprint - Other - Other - HTST-120-04-L-D-RA-2
click to zoom
3D Models
HTST-120-04-L-D-RA - SAMTEC - 3D model - Other - HTST-120-04-L-D-RA-2
click to zoom

HTST-120-04-L-D-RA Details

  • Manufacturer Part Number:

    HTST-120-04-L-D-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

HTST-120-04-L-D-RA Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the HTST-120-04-L-D-RA connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the HTST-120-04-L-D-RA connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure locking mechanism to ensure reliable connections even in harsh conditions.
  • The HTST-120-04-L-D-RA connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the HTST-120-04-L-D-RA connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The typical lead time for delivery of the HTST-120-04-L-D-RA connector varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders, and expedited shipping options are available for urgent requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HTST-120-04-L-D-RA Overview

Use the download button to access the HTST-120-04-L-D-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HTST-, or try a keyword search, such as Headers and Edge Type Connectors
