The recommended mating sequence for HTST-130-01-L-DV is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the HTST-130-01-L-DV is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
The maximum operating temperature for HTST-130-01-L-DV is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge with some caveats. However, using a smaller wire gauge may affect the connector's current-carrying capacity and reliability, while using a larger gauge may require additional processing steps.
To ensure proper termination, follow the recommended wire stripping and termination procedures outlined in the datasheet or Samtec's application notes. Additionally, use the correct wire insulation and stripping tools to prevent damage to the wires or connector.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HTST-130-01-L-DV Overview

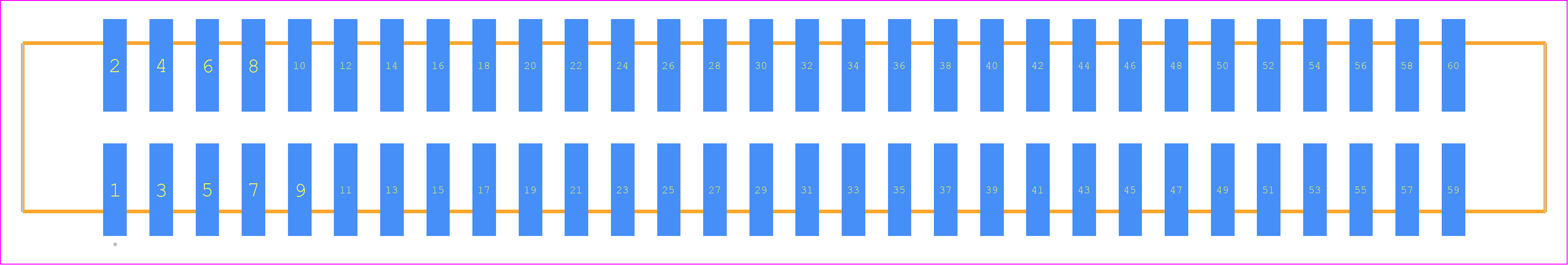

Use the download button to access the HTST-130-01-L-DV schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HTST-,
or try a keyword search, such as Headers and Edge Type Connectors
