HTSW-107-07-G-D-006 footprint, schematic symbol and 3D model by SAMTEC

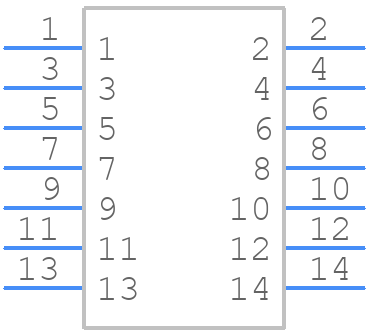

Symbol

click to zoom

PCB Footprints

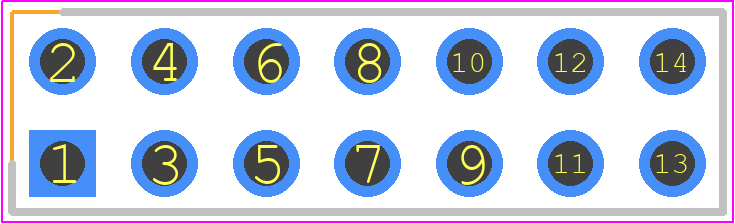

HTSW-107-07-G-D-006 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - HTSW-107-07-G-D-006*

click to zoom

3D Models

HTSW-107-07-G-D-006 - SAMTEC - 3D model - Header, Vertical - HTSW-107-07-G-D-006*

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HTSW-107-07-G-D-006
Part Number HTSW-107-07-G-D-006
Manufacturer SAMTEC
Pin Count 14
Part Category Connector
Package Category Header, Vertical
Footprint Name Header, Vertical - HTSW-107-07-G-D-006*
Released Date Jun 5, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HTSW-107-07-G-D-006 Details

Manufacturer Part Number:
HTSW-107-07-G-D-006
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
10
Additional Feature:
POLARIZED
Body Breadth:
0.198 inch
Body Depth:
0.1 inch
Body Length:
0.7 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Polarization Key:
POLAR PIN POSITION
Rated Current (Signal):
6.3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
13
UL Flammability Code:
94V-0

HTSW-107-07-G-D-006 Frequently Asked Questions (FAQs)

The recommended mating sequence for HTSW-107-07-G-D-006 is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the HTSW-107-07-G-D-006 is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The HTSW-107-07-G-D-006 has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the HTSW-107-07-G-D-006 is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of lead-free soldering, ensuring reliable connections and minimizing the risk of solder joint failure.
The recommended torque for the screw locks on the HTSW-107-07-G-D-006 is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-torquing can damage the screw locks or the connector housing, so it's essential to follow the recommended torque specification.

Trust Checks

Community Provided

System Verified

Community Approved

HTSW-107-07-G-D-006 Overview

Use the download button to access the HTSW-107-07-G-D-006 schematic symbol, PCB footprint, and 3D model.
