HTSW-112-07-G-T footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

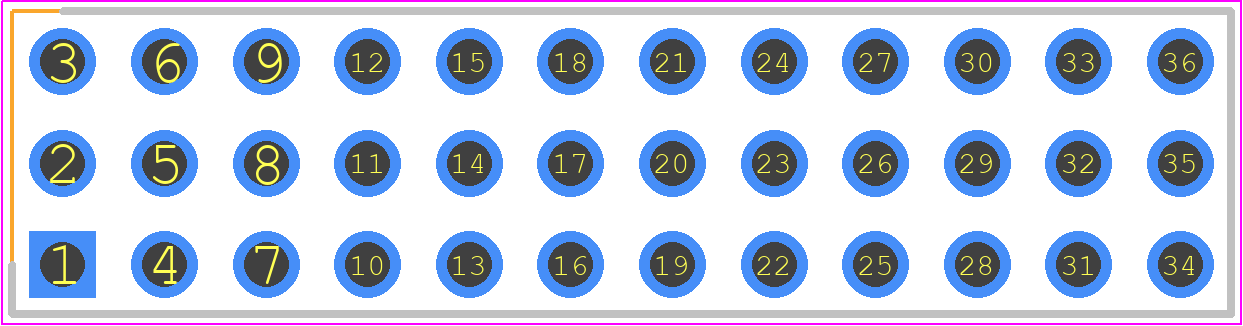

HTSW-112-07-G-T - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - HTSW-112-07-G-T

click to zoom

3D Models

HTSW-112-07-G-T - SAMTEC - 3D model - Header, Vertical - HTSW-112-07-G-T

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HTSW-112-07-G-T
Part Number HTSW-112-07-G-T
Manufacturer SAMTEC
Pin Count 36
Part Category Connector
Package Category Header, Vertical
Footprint Name Header, Vertical - HTSW-112-07-G-T
Released Date Jun 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HTSW-112-07-G-T Details

Manufacturer Part Number:
HTSW-112-07-G-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body Breadth:
0.298 inch
Body Depth:
0.1 inch
Body Length:
1.2 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Rated Current (Signal):
6.3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
36
UL Flammability Code:
94V-0

HTSW-112-07-G-T Frequently Asked Questions (FAQs)

The recommended torque for the screws on the HTSW-112-07-G-T connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the HTSW-112-07-G-T connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can withstand vibrations up to 15 g (147 m/s²) in the frequency range of 10-2000 Hz.
Yes, the HTSW-112-07-G-T connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds to ensure reliable connections.
The maximum operating temperature of the HTSW-112-07-G-T connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The HTSW-112-07-G-T connector is not designed for use in humid or wet environments. It does not have any special coatings or seals to protect it from moisture. If you need a connector for use in harsh environments, consider using a connector with a higher IP rating or specialized coatings.

Trust Checks

Community Provided

System Verified

Community Approved

HTSW-112-07-G-T Overview

Use the download button to access the HTSW-112-07-G-T schematic symbol, PCB footprint, and 3D model.
