HTSW-116-07-G-T footprint, schematic symbol and 3D model by SAMTEC

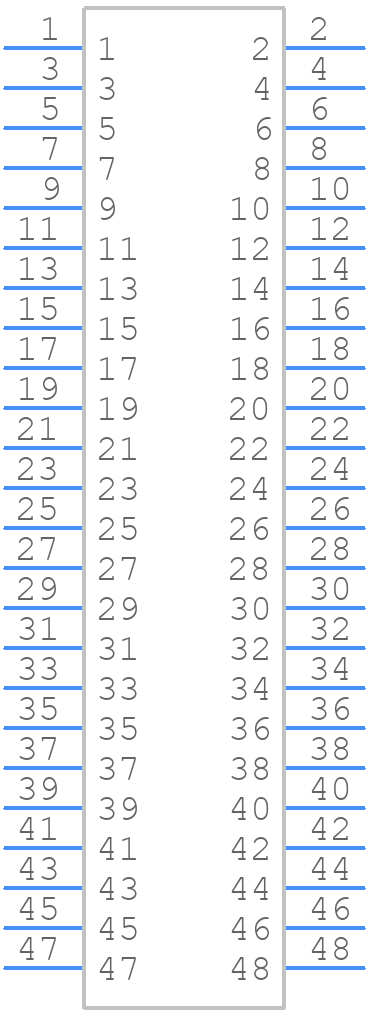

Symbol

click to zoom

PCB Footprints

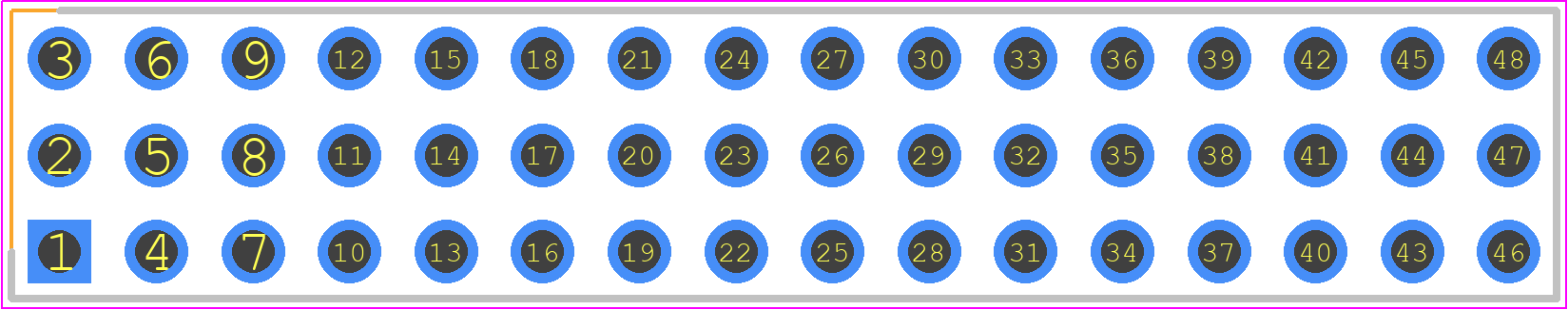

HTSW-116-07-G-T - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - HTSW-116-07-G-T-

click to zoom

3D Models

HTSW-116-07-G-T - SAMTEC - 3D model - Header, Vertical - HTSW-116-07-G-T-

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HTSW-116-07-G-T
Part Number HTSW-116-07-G-T
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Header, Vertical
Footprint Name Header, Vertical - HTSW-116-07-G-T-
Released Date Jun 3, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HTSW-116-07-G-T Details

Manufacturer Part Number:
HTSW-116-07-G-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Body Breadth:
0.298 inch
Body Depth:
0.1 inch
Body Length:
1.6 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
3
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Rated Current (Signal):
6.3 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
48

HTSW-116-07-G-T Frequently Asked Questions (FAQs)

The recommended torque for the screws on the HTSW-116-07-G-T connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the HTSW-116-07-G-T connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
Yes, the HTSW-116-07-G-T connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) for 10-15 seconds to ensure reliable connections.
The maximum operating temperature of the HTSW-116-07-G-T connector is 125°C (257°F). However, Samtec recommends derating the connector's current rating by 1% for every 1°C (1.8°F) above 85°C (185°F) to ensure reliable operation.
The HTSW-116-07-G-T connector has a moisture sensitivity level (MSL) of 1, which means it can withstand humid or wet environments. However, Samtec recommends following proper handling and storage procedures to prevent moisture ingress and ensure reliable operation.

Trust Checks

Community Provided

System Verified

Community Approved

HTSW-116-07-G-T Overview

Use the download button to access the HTSW-116-07-G-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HTSW-, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to HTSW-116-07-G-T

Showing 0 results

Image	Part Number	Model
	HTSW-116-07-L-T Samtec Inc Board Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking
	HTSW-116-07-F-T Samtec Inc Board Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking
For a full list of alternate parts for HTSW-116-07-G-T, check out Findchips.com
