HTSW-116-10-L-S-RE - SAMTEC

Description: Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole

Download HTSW-116-10-L-S-RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HTSW-116-10-L-S-RE - SAMTEC - PCB symbol
click to zoom
PCB Footprints

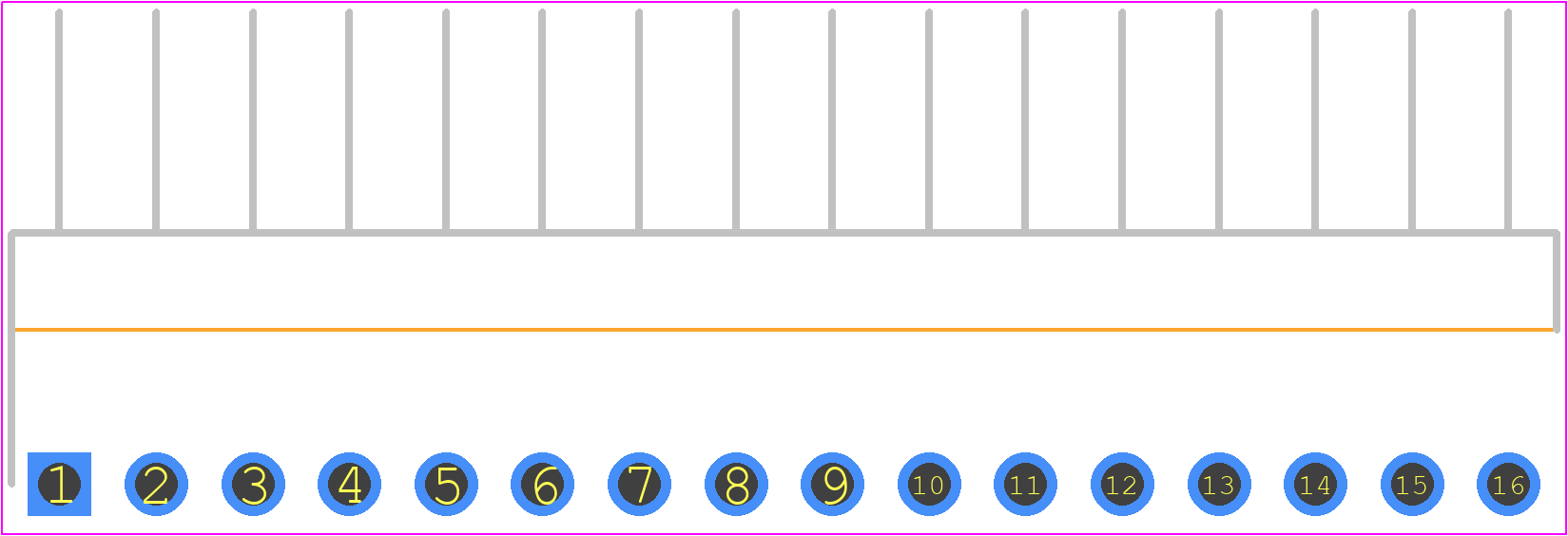

HTSW-116-10-L-S-RE - SAMTEC PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - HTSW-116-10-L-S-RE-
click to zoom
3D Models
HTSW-116-10-L-S-RE - SAMTEC - 3D model - Header, Unshrouded - Right Angle PTH Pin - HTSW-116-10-L-S-RE-
click to zoom

HTSW-116-10-L-S-RE Details

  • Manufacturer Part Number:

    HTSW-116-10-L-S-RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    10

  • Body Breadth:

    0.12 inch

  • Body Depth:

    0.26 inch

  • Body Length:

    1.6 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    6.3 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

HTSW-116-10-L-S-RE Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the HTSW-116-10-L-S-RE connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the HTSW-116-10-L-S-RE connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
  • The maximum operating temperature for the HTSW-116-10-L-S-RE connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • The HTSW-116-10-L-S-RE connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends following their guidelines for environmental sealing and using additional protection measures if the connector will be exposed to high humidity or water.
  • The recommended mating cycle for the HTSW-116-10-L-S-RE connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.
