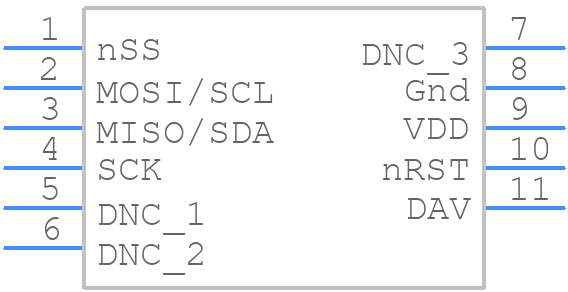

HV110-SM02-C - Superior Sensor Technology

HV110-SM02-C Details

• Manufacturer Part Number:

  HV110-SM02-C

• Brand Name:

  Superior Sensors

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• Package Description:

  PACKAGE-11

• Manufacturer:

  Superior Sensor Technology

• Accuracy-Max (%):

  0.1%

• Additional Feature:

  PORT HEIGHT=4.32 MM

• Body Breadth:

  12.7 mm

• Body Height:

  3.56 mm

• Body Length or Diameter:

  19.05 mm

• Housing:

  PLASTIC

• Mounting Feature:

  SURFACE MOUNT

• Number of Bits:

  16

• Operating Current-Max:

  3.8 mA

• Operating Temperature-Max:

  50 °C

• Output Interface Type:

  I2C/SPI

• Output Range:

  0.6-2.6V

• Output Type:

  DIGITAL VOLTAGE

• Package Shape/Style:

  RECTANGULAR

• Port Type:

  STRAIGHT

• Pressure Range-Max:

  0.362 Psi

• Pressure Range-Min:

  -0.018 Psi

• Pressure Sensing Mode:

  DIFFERENTIAL

• Response Time:

  40000 µs

• Sensors/Transducers Type:

  PRESSURE SENSOR,PIEZORESISTIVE

• Supply Voltage-Max:

  3.5 V

• Supply Voltage-Min:

  2.8 V

• Surface Mount:

  YES

• Termination Type:

  SOLDER
